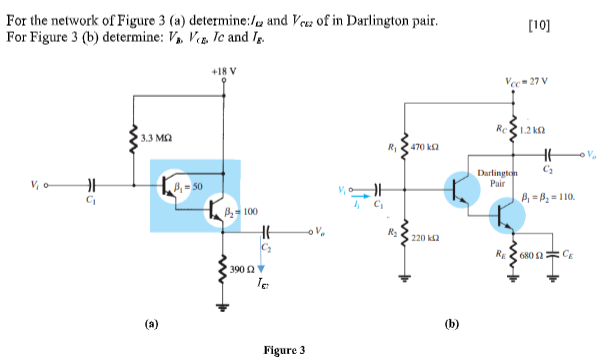

For the network of Figure 3 (a) determine:/ and Vez of in Darlington pair. For Figure 3 (b) determine: V₁ V IC and Ig. +18 V 3.3 M R₁ 470 k V₁ o 220 k2 H C₁ (a) B₁-50 ₂-100 390 2 Te Figure 3 V R₂ (b) Vec 27 V [10] Re21.2 k Darlington Pair RE HH C₂ B₁-B₂ 110. 680 CE
