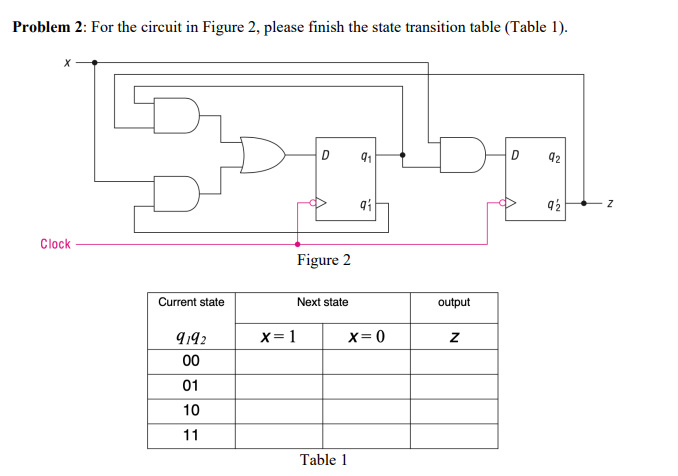

Problem 2: For the circuit in Figure 2, please finish the state transition table (Table 1). X 노 D 9₁ D 92 9₁ 92 Clock ou
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem 2: For the circuit in Figure 2, please finish the state transition table (Table 1). X 노 D 9₁ D 92 9₁ 92 Clock ou
Problem 2: For the circuit in Figure 2, please finish the state transition table (Table 1). X 노 D 9₁ D 92 9₁ 92 Clock output Z Current state 9192 00 01 10 11 X = 1 Figure 2 Next state Table 1 X = 0 D V Z
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
