Problem 1 (10 points): We wish to design a common-source amplifier, shown in Fig. 1, with an inverting gain of 2.5. Find
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Problem 1 (10 points): We wish to design a common-source amplifier, shown in Fig. 1, with an inverting gain of 2.5. Find

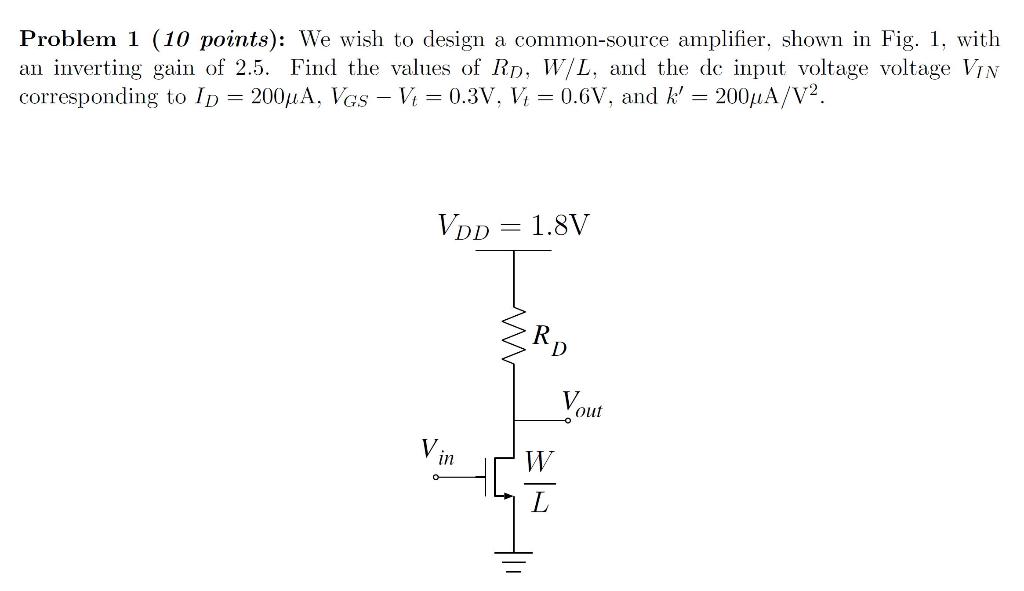

Problem 1 (10 points): We wish to design a common-source amplifier, shown in Fig. 1, with an inverting gain of 2.5. Find the values of RD, W/L, and the de input voltage voltage VIN corresponding to ID 200μA, VGS - V₁ = 0.3V, Vt = 0.6V, and k' = 200μA/V². = VDD = 1.8V RD V. in W L Vout
