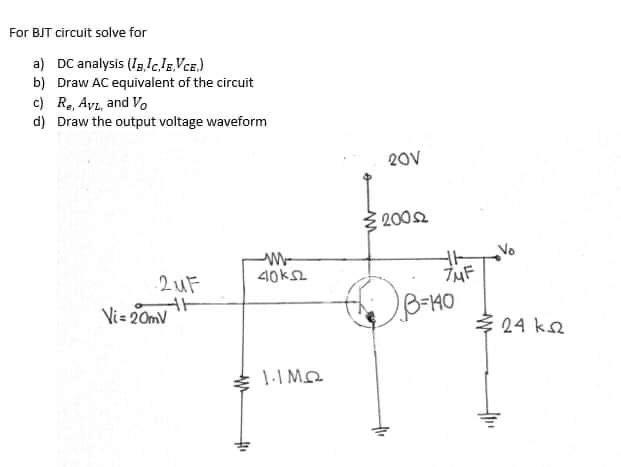

For BJT circuit solve for a) DC analysis (la.IC.IE.VCE.) b) Draw AC equivalent of the circuit c) R₂, AVL, and Vo d) Draw the output voltage waveform 2uF Vi=20mV fi W 40k52 1.1MQ 20V 2002 DB= 7μF B=HO Vo Σ 24 ΚΩ
