Given the feedback system of Figure 2.3: R(s) + K Figure 2.3 Find the following: a. The closed loop transfer function. b

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Given the feedback system of Figure 2.3: R(s) + K Figure 2.3 Find the following: a. The closed loop transfer function. b

Post by answerhappygod »

Given The Feedback System Of Figure 2 3 R S K Figure 2 3 Find The Following A The Closed Loop Transfer Function B 1
Given The Feedback System Of Figure 2 3 R S K Figure 2 3 Find The Following A The Closed Loop Transfer Function B 1 (22.51 KiB) Viewed 41 times

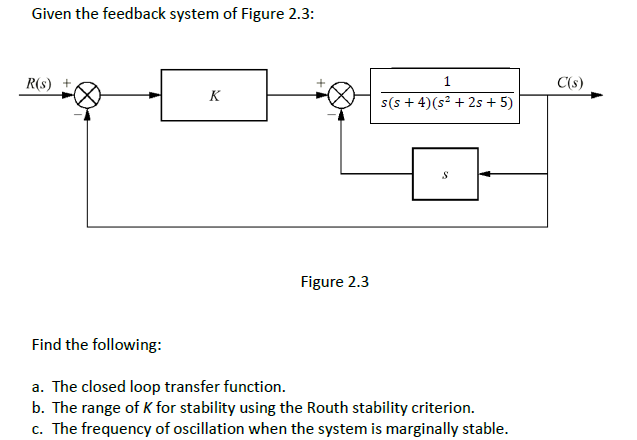

Given the feedback system of Figure 2.3: R(s) + K Figure 2.3 Find the following: a. The closed loop transfer function. b. The range of K for stability using the Routh stability criterion. c. The frequency of oscillation when the system is marginally stable. 1 s(s+ 4) (s² + 2s + 5) S C(s)
