For the circuit 50ΚΩ v; (1) m v₁ (1) 200 Κ Ω 1 μF a. Derive the transfer function relating the input voltage v; and outp
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
For the circuit 50ΚΩ v; (1) m v₁ (1) 200 Κ Ω 1 μF a. Derive the transfer function relating the input voltage v; and outp

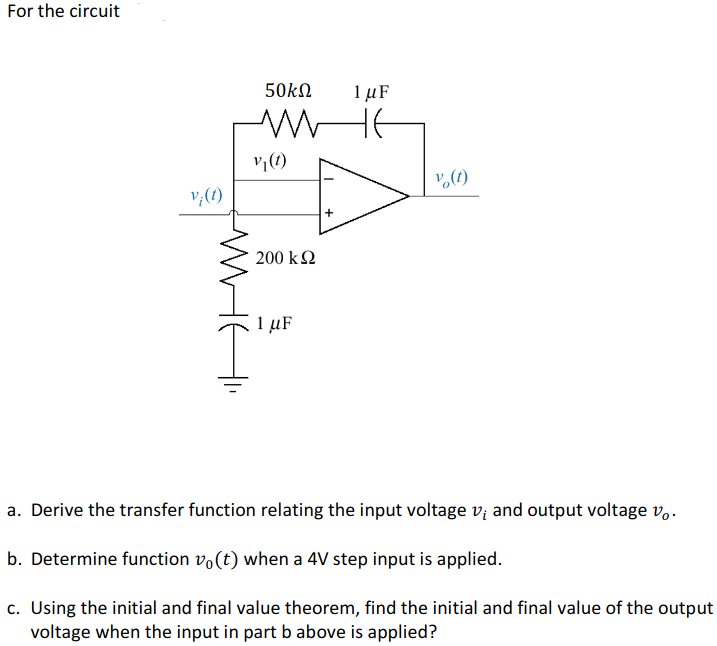

For the circuit 50ΚΩ v; (1) m v₁ (1) 200 Κ Ω 1 μF a. Derive the transfer function relating the input voltage v; and output voltage v. b. Determine function vo(t) when a 4V step input is applied. c. Using the initial and final value theorem, find the initial and final value of the output voltage when the input in part b above is applied? 1 μF + % (1)
