1. The voltage across a 60mF capacitor is shown below. a) Find the waveform for the current of the capacitor. b) Find th

Post by answerhappygod »

1 The Voltage Across A 60mf Capacitor Is Shown Below A Find The Waveform For The Current Of The Capacitor B Find Th 1
1 The Voltage Across A 60mf Capacitor Is Shown Below A Find The Waveform For The Current Of The Capacitor B Find Th 1 (128.19 KiB) Viewed 34 times
Please do all 3 parts

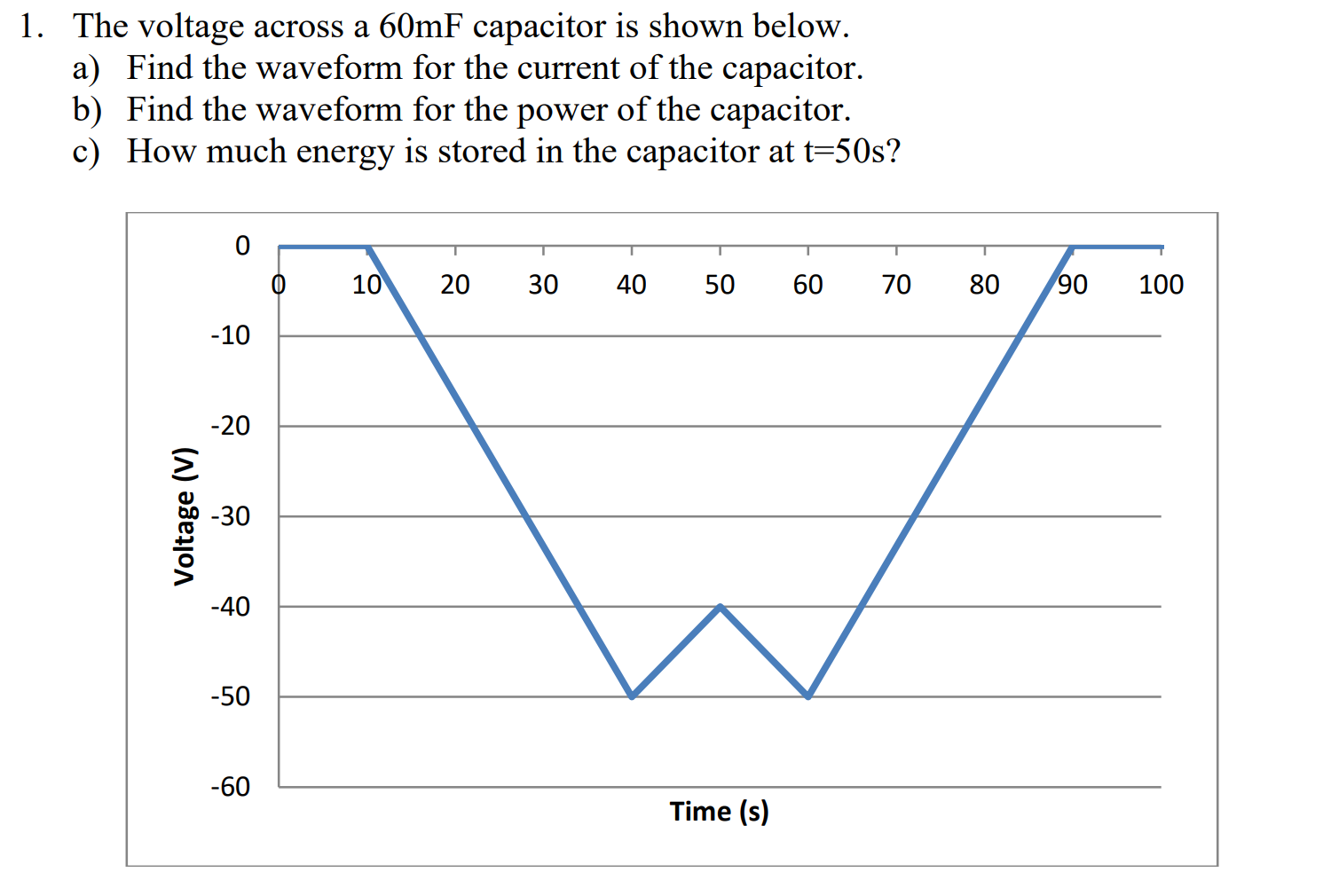

1. The voltage across a 60mF capacitor is shown below. a) Find the waveform for the current of the capacitor. b) Find the waveform for the power of the capacitor. c) How much energy is stored in the capacitor at t=50s? 0 10 20 30 40 50 60 70 -10 -20 -30 -40 -50 -60 Voltage (V) Time (s) 80 90 100
