Obtain the load flow solution at the end of first iteration of the system with data as given in Table 1 and 2. The solut

[answerhappygod]

Obtain The Load Flow Solution At The End Of First Iteration Of The System With Data As Given In Table 1 And 2 The Solut 1 (46.56 KiB) Viewed 39 times

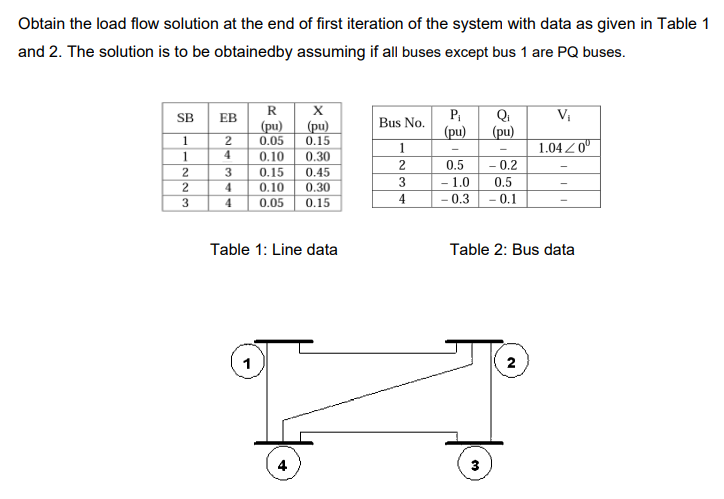

Obtain the load flow solution at the end of first iteration of the system with data as given in Table 1 and 2. The solution is to be obtained by assuming if all buses except bus 1 are PQ buses. R X SB EB P₁ Q₁ V₁ (pu) (pu) Bus No. (pu) (pu) 1 2 0.05 0.15 1 1.04/0⁰ 1 4 0.10 0.30 2 0.5 -0.2 2 3 0.15 0.45 3 - 1.0 0.5 2 4 0.10 0.30 3 4 0.05 0.15 4 -0.3 -0.1 Table 1: Line data Table 2: Bus data 2
