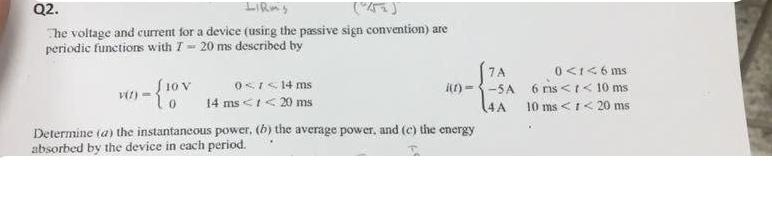

the voltage and current for a device (using the passive sign
convention) are periodic functiom with T = 20 ms described by
Determine the (a) instantaneous power, (b), the average power. and
(c) the energy absorbed by the device in each period.
The Voltage And Current For A Device Using The Passive Sign Convention Are Periodic Functiom With T 20 Ms Described 1 (17.43 KiB) Viewed 36 times
Q2. LIRMS The voltage and current for a device (using the passive sign convention) are periodic functions with I-20 ms described by 7A V 0</<14 ms i(t)- - {10 v -5A v(1) 14 ms <1 < 20 ms 4A Determine (a) the instantaneous power, (b) the average power, and (c) the energy absorbed by the device in each period. 0 <1 < 6 ms 6 ms<t< 10 ms 10 ms << 20 ms
