Q2a. [10 marks] Two coils are tightly wound on a magnetic core having a mean length of (100-1X) cm and a core diameter o

Post by answerhappygod »

Q2a 10 Marks Two Coils Are Tightly Wound On A Magnetic Core Having A Mean Length Of 100 1x Cm And A Core Diameter O 1
Q2a 10 Marks Two Coils Are Tightly Wound On A Magnetic Core Having A Mean Length Of 100 1x Cm And A Core Diameter O 1 (15.25 KiB) Viewed 37 times

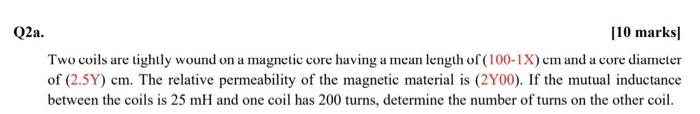

Q2a. [10 marks] Two coils are tightly wound on a magnetic core having a mean length of (100-1X) cm and a core diameter of (2.5Y) cm. The relative permeability of the magnetic material is (2Y00). If the mutual inductance between the coils is 25 mH and one coil has 200 turns, determine the number of turns on the other coil.
