For the low-pass filter shown in Figure 3, R₁-60 kQ, RF-15 kQ, and CF=10 μF. Assuming ideal behaviour and for w = wc = A

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the low-pass filter shown in Figure 3, R₁-60 kQ, RF-15 kQ, and CF=10 μF. Assuming ideal behaviour and for w = wc = A

Post by answerhappygod »

1
1 (52.46 KiB) Viewed 30 times

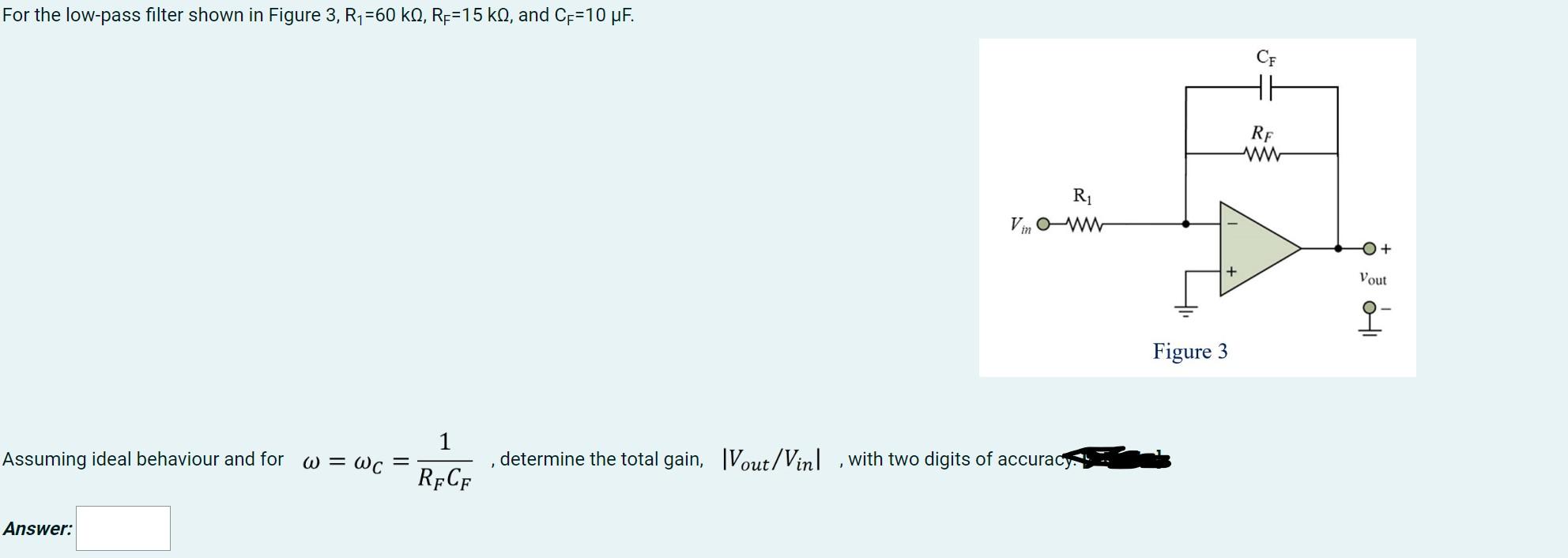

For the low-pass filter shown in Figure 3, R₁-60 kQ, RF-15 kQ, and CF=10 μF. Assuming ideal behaviour and for w = wc = Answer: RFCF R₁ Vin O-WWW determine the total gain, Vout/Vin, with two digits of accuracy , Figure 3 CF HH RF ww O + Vout
