1. i. Determine the series equivalent inductance (Lx) and resistance (Rx) of the network shown in figure 1, which causes

Post by answerhappygod »

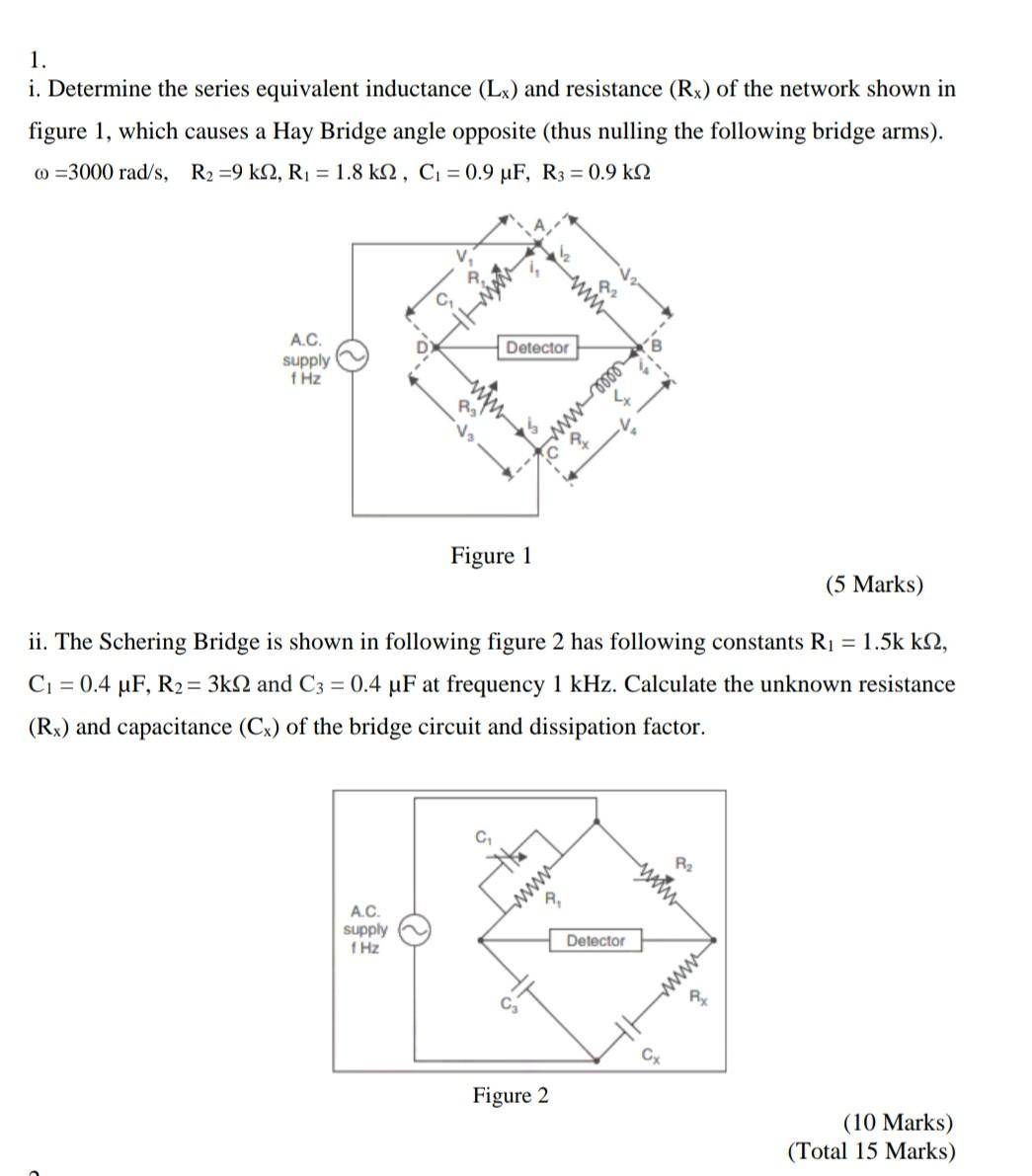

1 I Determine The Series Equivalent Inductance Lx And Resistance Rx Of The Network Shown In Figure 1 Which Causes 1
1 I Determine The Series Equivalent Inductance Lx And Resistance Rx Of The Network Shown In Figure 1 Which Causes 1 (83.1 KiB) Viewed 33 times
It's easy if you give it within 15 minutes
1. i. Determine the series equivalent inductance (Lx) and resistance (Rx) of the network shown in figure 1, which causes a Hay Bridge angle opposite (thus nulling the following bridge arms). @=3000 rad/s, R₂ =9 k2, R₁ = 1.8 k, C₁ = 0.9 µF, R3 = 0.9 k A.C. supply f Hz Figure 1 (5 Marks) ii. The Schering Bridge is shown in following figure 2 has following constants R₁ = 1.5k k2, C₁ = 0.4 µF, R2 = 3k2 and C3 = 0.4 µF at frequency 1 kHz. Calculate the unknown resistance (Rx) and capacitance (Cx) of the bridge circuit and dissipation factor. P₂ A.C. supply 1 Hz (10 Marks) (Total 15 Marks) www ww Detector www R₁ Figure 2 Hx 91₂ elle ww Detector Cy wwww Rx
