1. i. Determine the series equivalent inductance (Lx) and resistance (Rx) of the network shown in figure 1, which causes

Post by answerhappygod »

1 I Determine The Series Equivalent Inductance Lx And Resistance Rx Of The Network Shown In Figure 1 Which Causes 1
1 I Determine The Series Equivalent Inductance Lx And Resistance Rx Of The Network Shown In Figure 1 Which Causes 1 (72.03 KiB) Viewed 44 times
Please repply within 20 minuits. Thanks 🙏

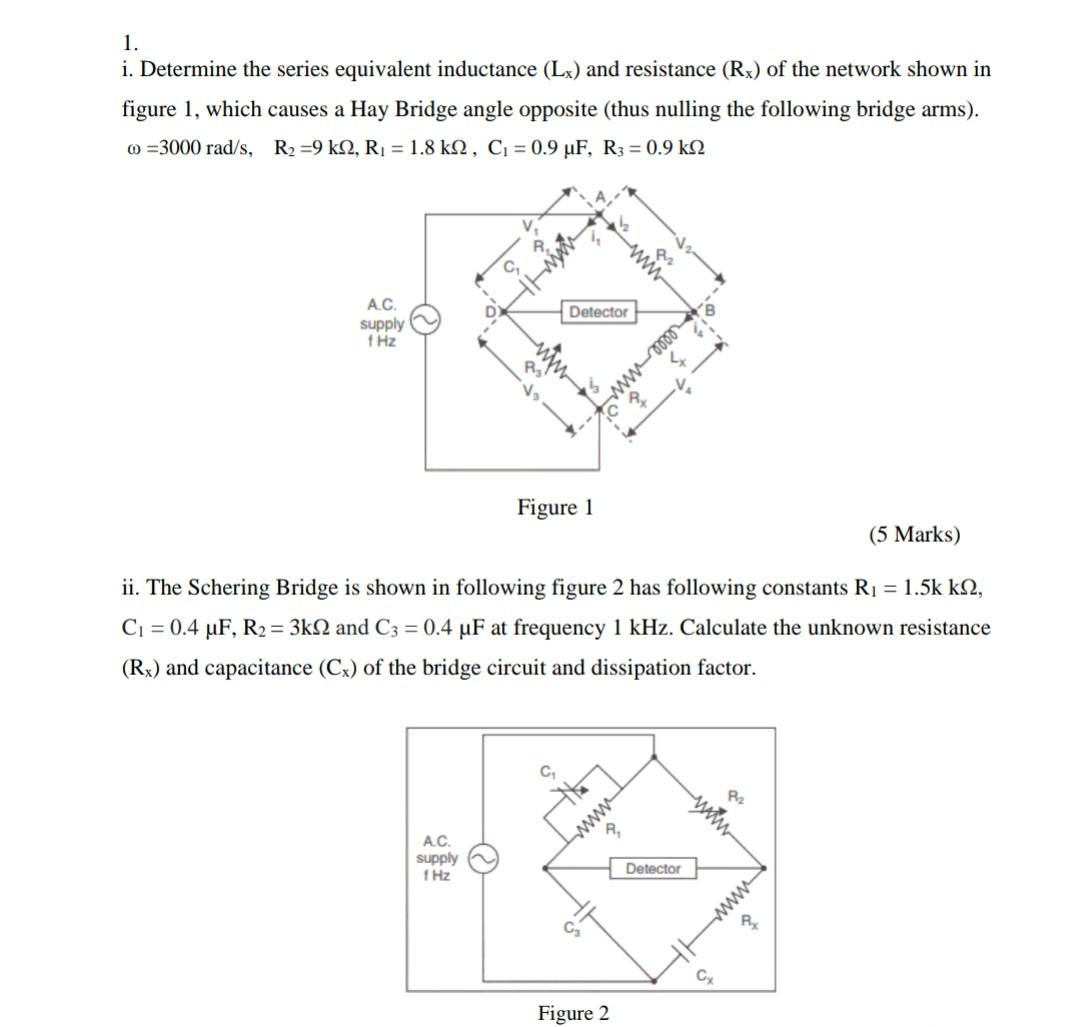

1. i. Determine the series equivalent inductance (Lx) and resistance (Rx) of the network shown in figure 1, which causes a Hay Bridge angle opposite (thus nulling the following bridge arms). @=3000 rad/s, R₂ =9 k2, R₁ = 1.8 k2, C₁ = 0.9 μF, R3 = 0.9 k G₁ A.C. Detector supply f Hz Figure 1 (5 Marks) ii. The Schering Bridge is shown in following figure 2 has following constants R₁ = 1.5k km2, C₁ = 0.4 µF, R₂ = 3k and C3= 0.4 µF at frequency 1 kHz. Calculate the unknown resistance (Rx) and capacitance (Cx) of the bridge circuit and dissipation factor. A.C. supply 1 Hz B Detector Cx Figure 2 ? wwwwww elle ww 4 wwwww
