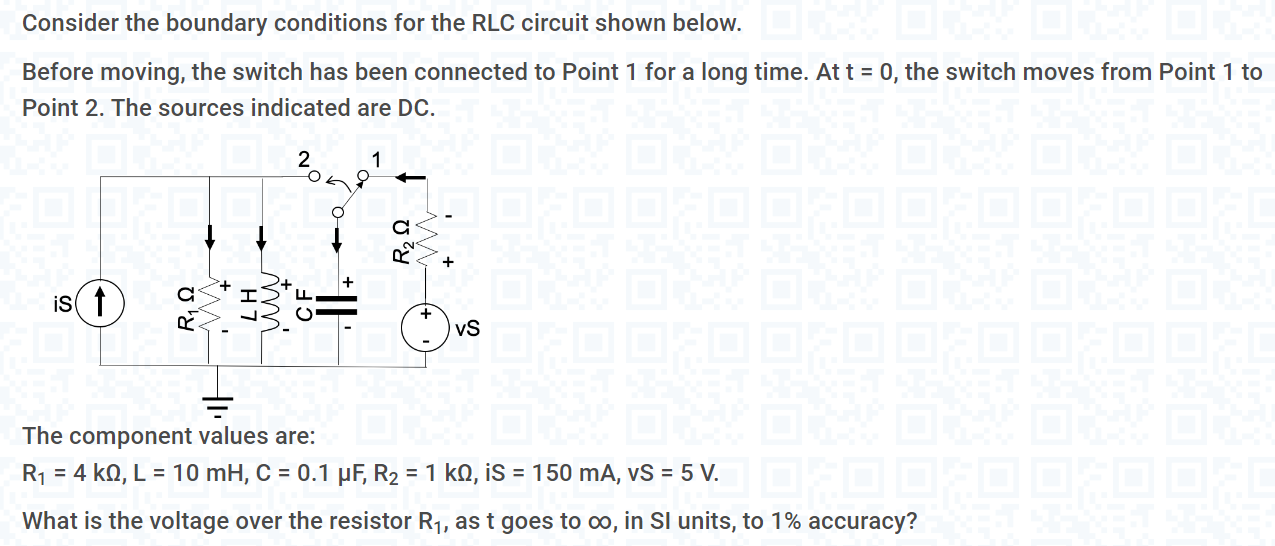

Consider the boundary conditions for the RLC circuit shown below.X IN IN IN Before moving, the switch has been connected

[answerhappygod]

Consider The Boundary Conditions For The Rlc Circuit Shown Below X In In In Before Moving The Switch Has Been Connected 1 (111.89 KiB) Viewed 43 times

Consider the boundary conditions for the RLC circuit shown below.X IN IN IN Before moving, the switch has been connected to Point 1 for a long time. At t = 0, the switch moves from Point 1 to Point 2. The sources indicated are DC. is ↑ VS The component values are: R₁ = 4 kQ, L = 10 mH, C = 0.1 µF, R₂ = 1 kº, iS = 150 mA, vS = 5 V. What is the voltage over the resistor R₁, as t goes to ∞o, in Sl units, to 1% accuracy? R₁Q LH im CF
