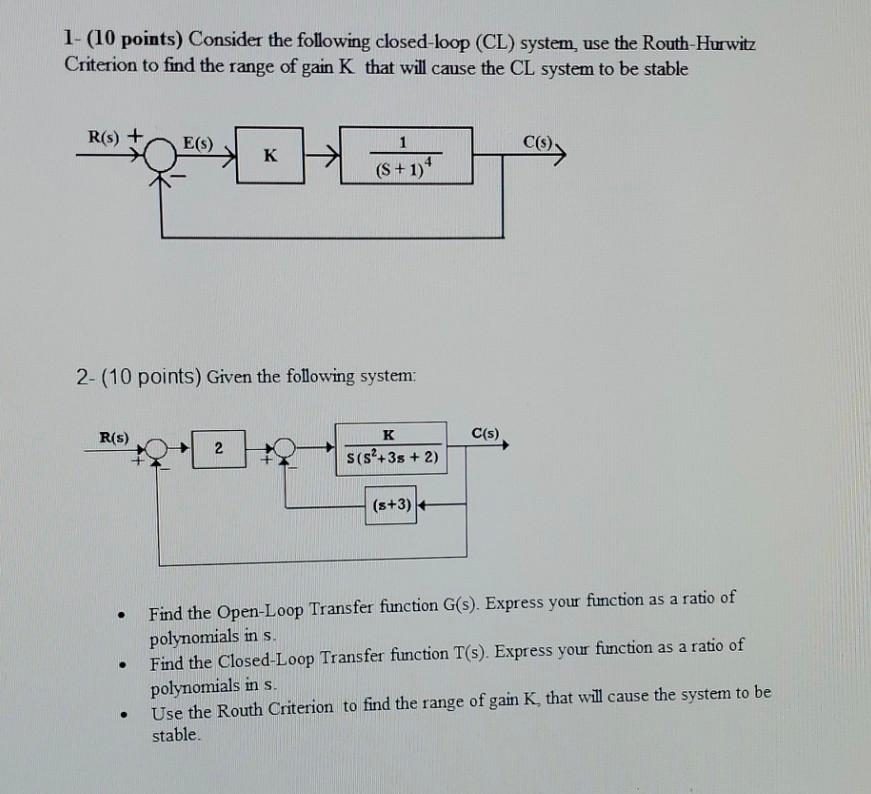

1- (10 points) Consider the following closed-loop (CL) system, use the Routh-Hurwitz Criterion to find the range of gain

[answerhappygod]

1 10 Points Consider The Following Closed Loop Cl System Use The Routh Hurwitz Criterion To Find The Range Of Gain 1 (62.35 KiB) Viewed 45 times

1- (10 points) Consider the following closed-loop (CL) system, use the Routh-Hurwitz Criterion to find the range of gain K that will cause the CL system to be stable R(s) + E(s) C($) K (S+1)4 2- (10 points) Given the following system: R(s) K C(s) 2 S(S²+3s + 2) (s+3) ● Find the Open-Loop Transfer function G(s). Express your function as a ratio of polynomials in s. ● Find the Closed-Loop Transfer function T(s). Express your function as a ratio of polynomials in s. ● Use the Routh Criterion to find the range of gain K, that will cause the system to be stable.
