PROBLEM 1: We would like to synthesize the following three phase voltage using SVPWM: Va(t) = 50 cos wt vb (t) = 50 cos(

[answerhappygod]

Problem 1 We Would Like To Synthesize The Following Three Phase Voltage Using Svpwm Va T 50 Cos Wt Vb T 50 Cos 1 (18.17 KiB) Viewed 51 times

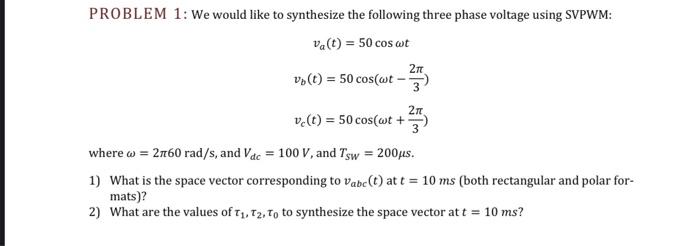

PROBLEM 1: We would like to synthesize the following three phase voltage using SVPWM: Va(t) = 50 cos wt vb (t) = 50 cos(wt - vc (t) = 50 cos(wt + where w = 2760 rad/s, and Vdc = 100 V, and Tsw = 200µs. 1) What is the space vector corresponding to Vabe (t) at t = 10 ms (both rectangular and polar for- mats)? 2) What are the values of T₁, T2, To to synthesize the space vector at t = 10 ms? 2π 2π
