RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at

Post by answerhappygod »

Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1
Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1 (29.2 KiB) Viewed 37 times

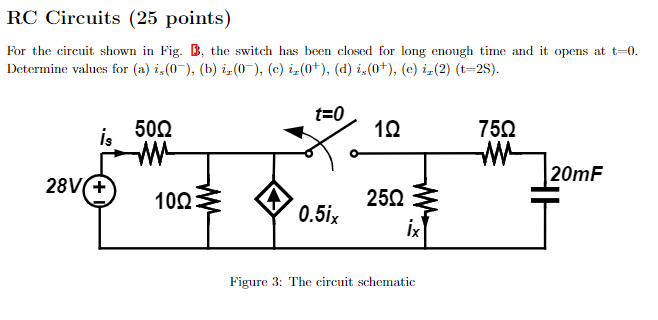

RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values for (a) i,(0¯), (b) i,(0−), (c) i,(0¹), (d) i, (0¹), (e) i,(2) (t=2S). t=0 122 750 İs 500 MM MM 20mF 28V(+ 250 1002 0.5ix İx Figure 3: The circuit schematic
