1) Problem 1: For the circuit in Figure 1, Vcc=+5V: Vss=-5V; VT(Threshold Voltage) -IV; IDs ImA; I12= 100uA; Vov(Overdri

Post by answerhappygod »

1 Problem 1 For The Circuit In Figure 1 Vcc 5v Vss 5v Vt Threshold Voltage Iv Ids Ima I12 100ua Vov Overdri 1
1 Problem 1 For The Circuit In Figure 1 Vcc 5v Vss 5v Vt Threshold Voltage Iv Ids Ima I12 100ua Vov Overdri 1 (47.28 KiB) Viewed 16 times

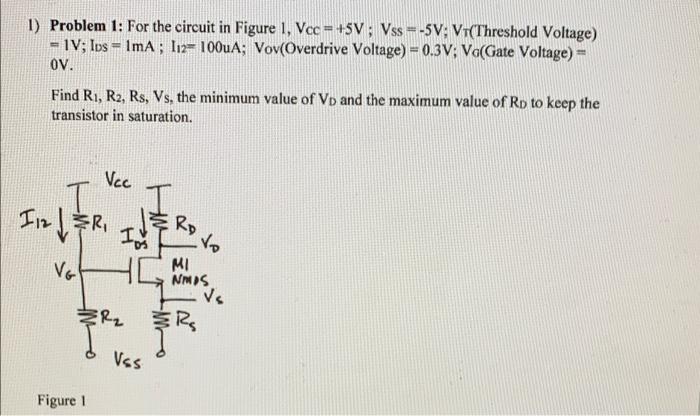

1) Problem 1: For the circuit in Figure 1, Vcc=+5V: Vss=-5V; VT(Threshold Voltage) -IV; IDs ImA; I12= 100uA; Vov(Overdrive Voltage) = 0.3V; Vo(Gate Voltage) = OV. = Find R1, R2, Rs, Vs, the minimum value of VD and the maximum value of RD to keep the transistor in saturation. Vcc T 112 | ER₁ VG Figure 1 ER₂ Vss 产品 to MI NMPS R₂ Vs
