V1 10V R1 1kQ R2 R4 2.2kΩ 34.7ΚΩ V2 -6V 1. X 2. PRELAB: For the circuit in Figure 1, calculate the Thevenin and Norton E

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

V1 10V R1 1kQ R2 R4 2.2kΩ 34.7ΚΩ V2 -6V 1. X 2. PRELAB: For the circuit in Figure 1, calculate the Thevenin and Norton E

Post by answerhappygod »

1
1 (25.09 KiB) Viewed 22 times

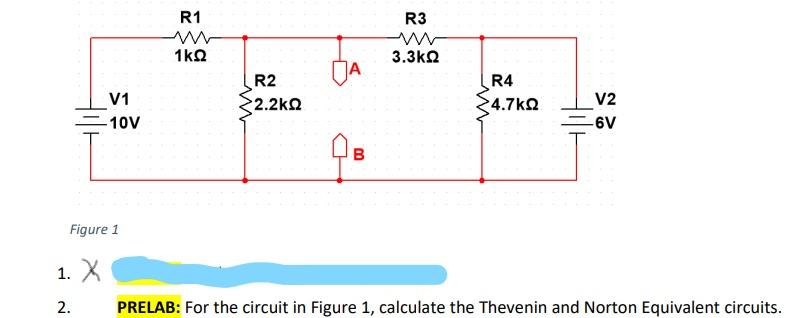

V1 10V R1 1kQ R2 R4 2.2kΩ 34.7ΚΩ V2 -6V 1. X 2. PRELAB: For the circuit in Figure 1, calculate the Thevenin and Norton Equivalent circuits. Figure 1 R3 www 3.3kQ2 ww
