(b) Show that the circuit below is a BSF. If the circuit is to reject a 1 k.rad/s sinusoid while passing other frequenci

Post by answerhappygod »

B Show That The Circuit Below Is A Bsf If The Circuit Is To Reject A 1 K Rad S Sinusoid While Passing Other Frequenci 1
B Show That The Circuit Below Is A Bsf If The Circuit Is To Reject A 1 K Rad S Sinusoid While Passing Other Frequenci 1 (20.15 KiB) Viewed 19 times

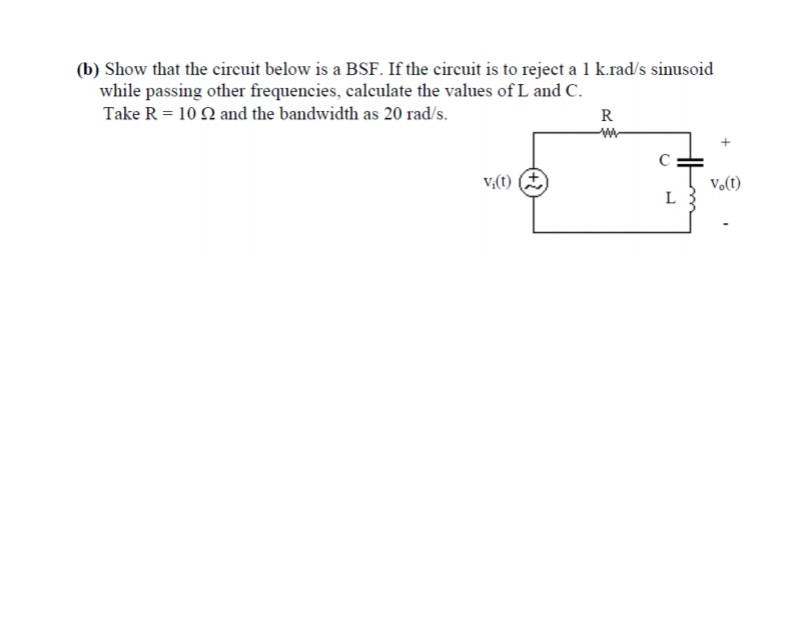

(b) Show that the circuit below is a BSF. If the circuit is to reject a 1 k.rad/s sinusoid while passing other frequencies, calculate the values of L and C. Take R = 10 22 and the bandwidth as 20 rad/s. R C v;(t) + vo(t) RW L
