Use Nodal Analysis to solve for node voltages V₁, Vb, and Vc in the circuit below. You can check collapsing/expanding th

Post by answerhappygod »

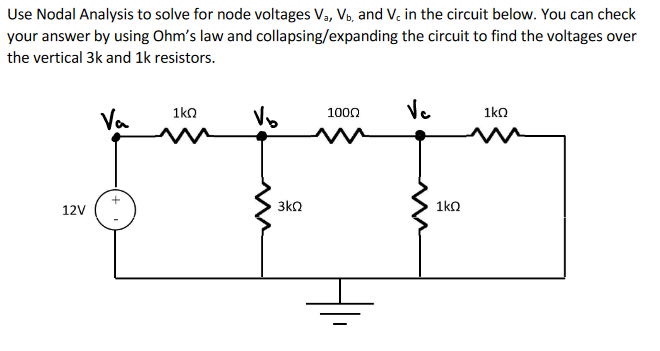

Use Nodal Analysis To Solve For Node Voltages V Vb And Vc In The Circuit Below You Can Check Collapsing Expanding Th 1
Use Nodal Analysis To Solve For Node Voltages V Vb And Vc In The Circuit Below You Can Check Collapsing Expanding Th 1 (32.96 KiB) Viewed 29 times
I wasnt able to obtain the correct answer with my solution, but
the answers are shown below.
answers: Va = 12 V, Vb = 4 V, Vc = 48.475 V
Use Nodal Analysis to solve for node voltages V₁, Vb, and Vc in the circuit below. You can check collapsing/expanding the circuit to find the voltages over your answer by using Ohm's law and the vertical 3k and 1k resistors. 1kΩ 1000 Vc 1kQ Va V₂ + 12V 3ΚΩ 1kQ
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
