Rc Circuits 25 Points For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At 1 (38.31 KiB) Viewed 19 times
Dependent source = 0.5ix

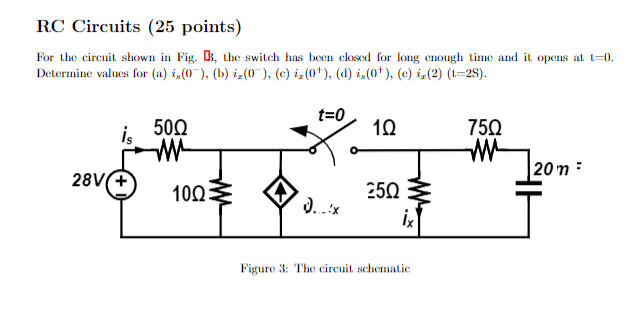

RC Circuits (25 points) For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values for (a) i,(0), (b) iz(0), (c) iz(0¹), (d) i,(0¹), (c) iz(2) (1-25). t=0 50Ω 10 750 is MM 20 m 28V+ 250 0...:X ix Figure 3: The circuit schematic M 1002
