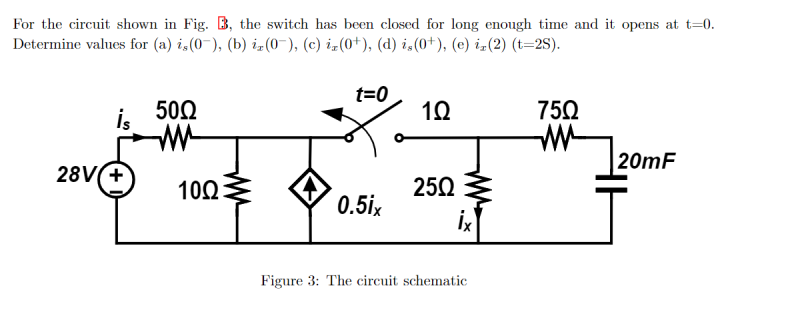

For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values f

[answerhappygod]

For The Circuit Shown In Fig 3 The Switch Has Been Closed For Long Enough Time And It Opens At T 0 Determine Values F 1 (44.76 KiB) Viewed 26 times

For the circuit shown in Fig. 3, the switch has been closed for long enough time and it opens at t=0. Determine values for (a) is(0-), (b) iz(0), (c) iz(0¹), (d) is (0+), (e) iz (2) (t=2S). t=0 is 750 192 50Ω MM 20mF 28V(+ 250 0.5ix ix Figure 3: The circuit schematic 10Ω
