- Phasor Analysis 25 Points For The Circuit Shown In Fig 2 Find I T For The Given Configuration 16 Points Find 1 (19.75 KiB) Viewed 23 times
Phasor Analysis (25 points) For the circuit shown in Fig. 2 • Find i(t) for the given configuration (16 points). • Find
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Phasor Analysis (25 points) For the circuit shown in Fig. 2 • Find i(t) for the given configuration (16 points). • Find

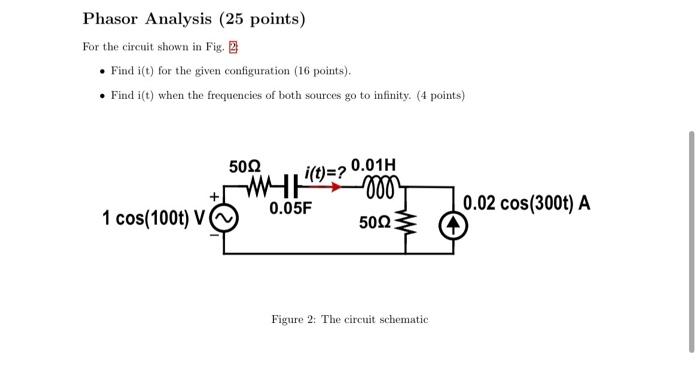

Phasor Analysis (25 points) For the circuit shown in Fig. 2 • Find i(t) for the given configuration (16 points). • Find i(t) when the frequencies of both sources go to infinity. (4 points) 50Ω 0.01H i(t)=? 1 cos(100t) V WH m² 0.05F 50Ω Figure 2: The circuit schematic. 0.02 cos(300t) A
