The circuit shown in Fig.4.1 has the following circuit parameters: R, = 2 ΚΩ, R. = 22 ΚΩ R, = 4 ΚΩ, R = 20 ΚΩ Vcc 12. a)
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The circuit shown in Fig.4.1 has the following circuit parameters: R, = 2 ΚΩ, R. = 22 ΚΩ R, = 4 ΚΩ, R = 20 ΚΩ Vcc 12. a)

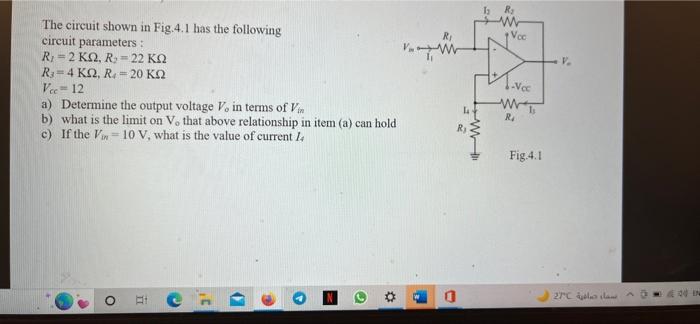

The circuit shown in Fig.4.1 has the following circuit parameters: R, = 2 ΚΩ, R. = 22 ΚΩ R, = 4 ΚΩ, R = 20 ΚΩ Vcc 12. a) Determine the output voltage V, in terms of Vin b) what is the limit on V, that above relationship in item (a) can hold c) If the Vi=10 V, what is the value of current 14 O ii кати w 1₂ R₂ www Voc -Vec ww R₁ Fig.4.1 V. سماء عادية 2 0 IN
