Question 4 (10 Marks) The circuit shown in Fig.4.1 has the following circuit parameters: Vin R, = 2 ΚΩ, R2 = 22 ΚΩ R3 =

[answerhappygod]

1 (42.92 KiB) Viewed 27 times

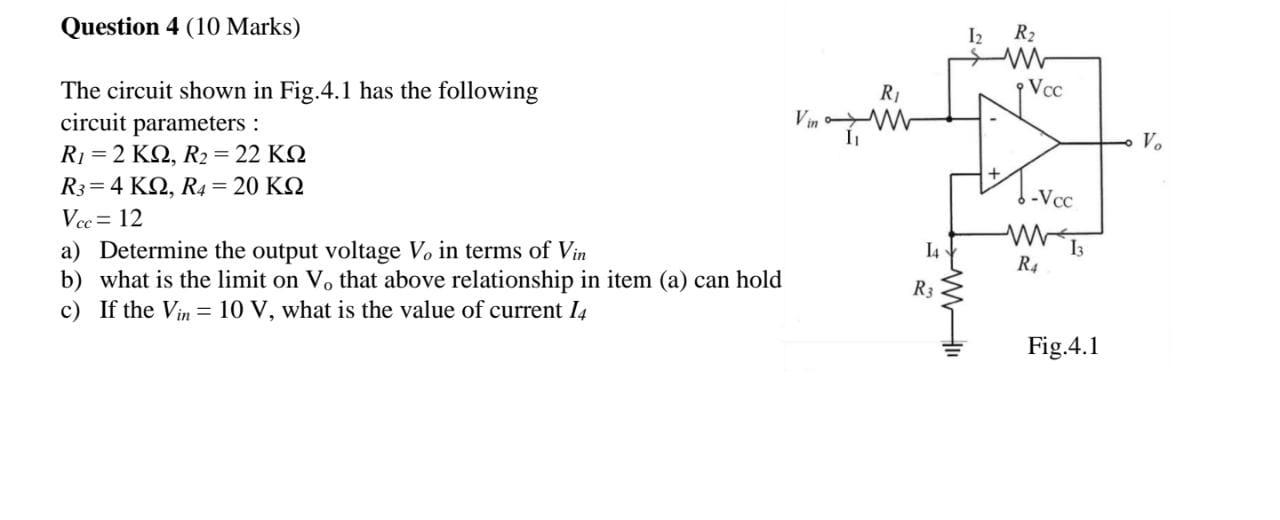

Question 4 (10 Marks) The circuit shown in Fig.4.1 has the following circuit parameters: Vin R, = 2 ΚΩ, R2 = 22 ΚΩ R3 = 4 ΚΩ, R4 = 20 ΚΩ Vcc= 12 a) Determine the output voltage V, in terms of Vin b) what is the limit on V, that above relationship in item (a) can hold c) If the Vin = 10 V, what is the value of current 14 R₁ 14 R3 I2 R₂ Vcc -Vcc ww R4 13 Fig.4.1 Vo
