The electrostatic comb drive shown below has N = 4 fingers, each of width W = 10 mm and thickness s = 1 mm. It can perfo

[answerhappygod]

The Electrostatic Comb Drive Shown Below Has N 4 Fingers Each Of Width W 10 Mm And Thickness S 1 Mm It Can Perfo 1 (40.62 KiB) Viewed 20 times

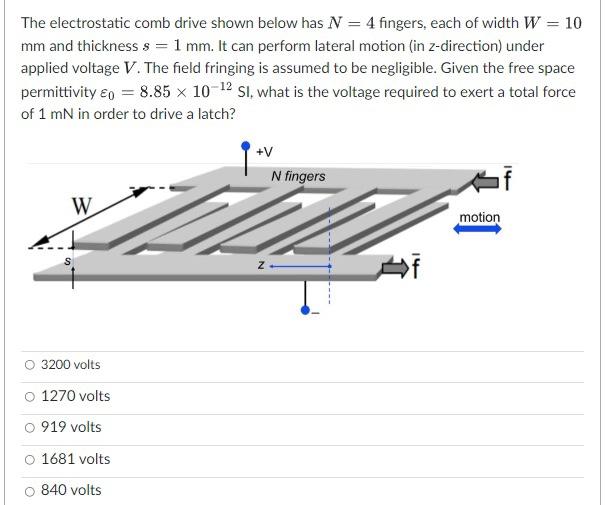

The electrostatic comb drive shown below has N = 4 fingers, each of width W = 10 mm and thickness s = 1 mm. It can perform lateral motion (in z-direction) under applied voltage V. The field fringing is assumed to be negligible. Given the free space permittivity = 8.85 x 10-¹2 SI, what is the voltage required to exert a total force of 1 mN in order to drive a latch? +V N fingers W 3200 volts 1270 volts 0 919 volts 1681 volts 840 volts Z motion 14
