A periodic rectangular pulse train with amplitude 2V, period 100 μs (freq=10kHz) and duty cycle in the range ≤150 KHz. a

Post by answerhappygod »

1
1 (9.18 KiB) Viewed 25 times
Could you post the source code to the plot on Matlab and post
the output of the plot?

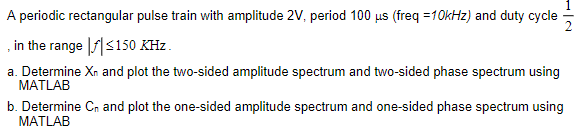

A periodic rectangular pulse train with amplitude 2V, period 100 μs (freq=10kHz) and duty cycle in the range ≤150 KHz. a. Determine Xn and plot the two-sided amplitude spectrum and two-sided phase spectrum using MATLAB b. Determine C, and plot the one-sided amplitude spectrum and one-sided phase spectrum using MATLAB
