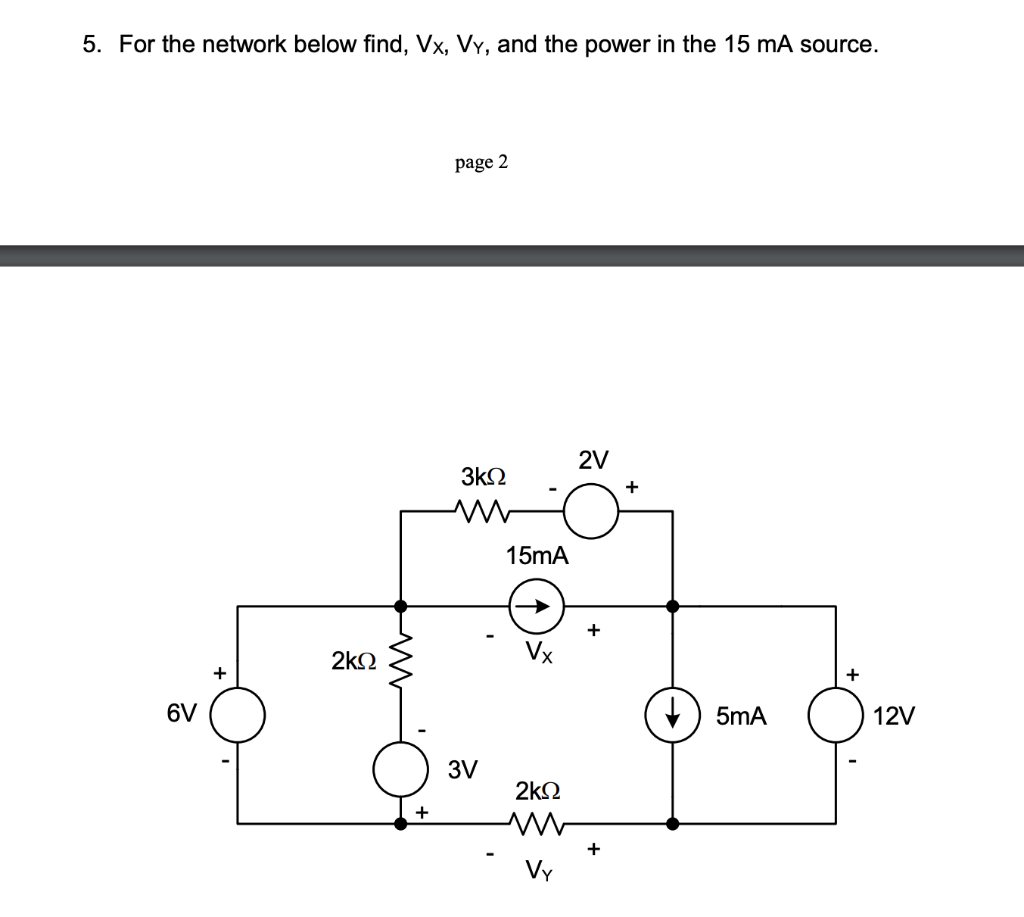

5. For the network below find, Vx, Vy, and the power in the 15 mA source. page 2 3ΚΩ 6V + 2ΚΩ M m 3V 15mA Vx 2ΚΩ M Vy 2V
-
