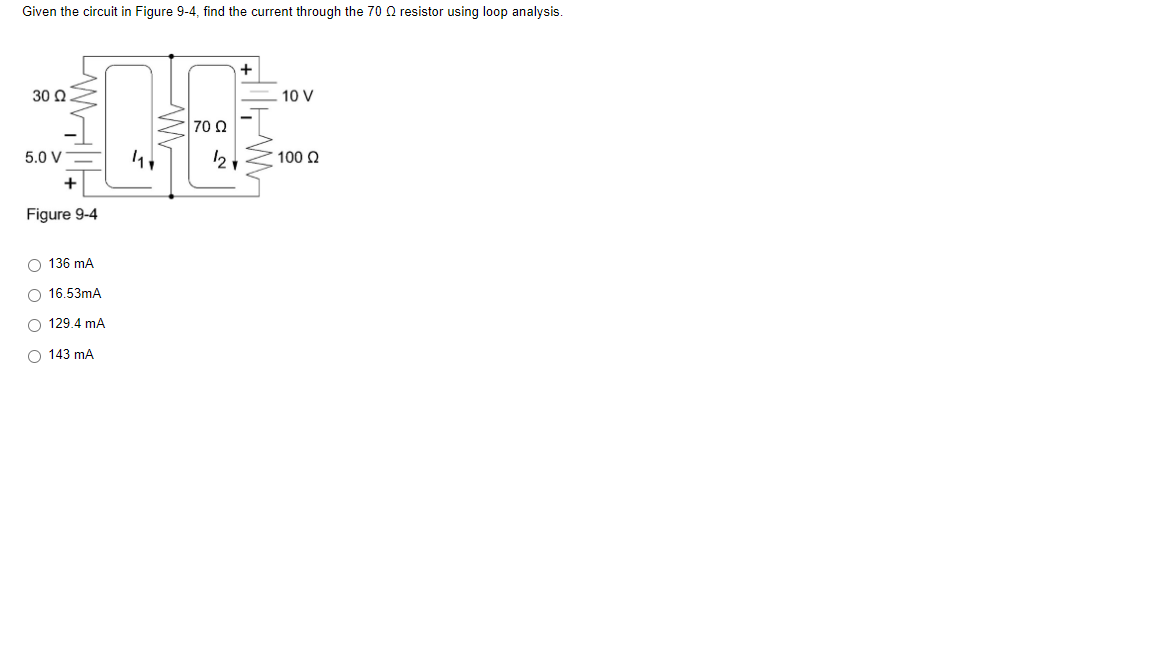

Given the circuit in Figure 9-4, find the current through the 70 resistor using loop analysis. 30 Ω . 10 V |70 Ω 100 Q 5
