The three-phase full-wave rectifier of Figure 1, has a load L=2,5 mH, R = 3.5 2 and E = 12 V. The line-to-line input vol

[answerhappygod]

The Three Phase Full Wave Rectifier Of Figure 1 Has A Load L 2 5 Mh R 3 5 2 And E 12 V The Line To Line Input Vol 1 (87.49 KiB) Viewed 27 times

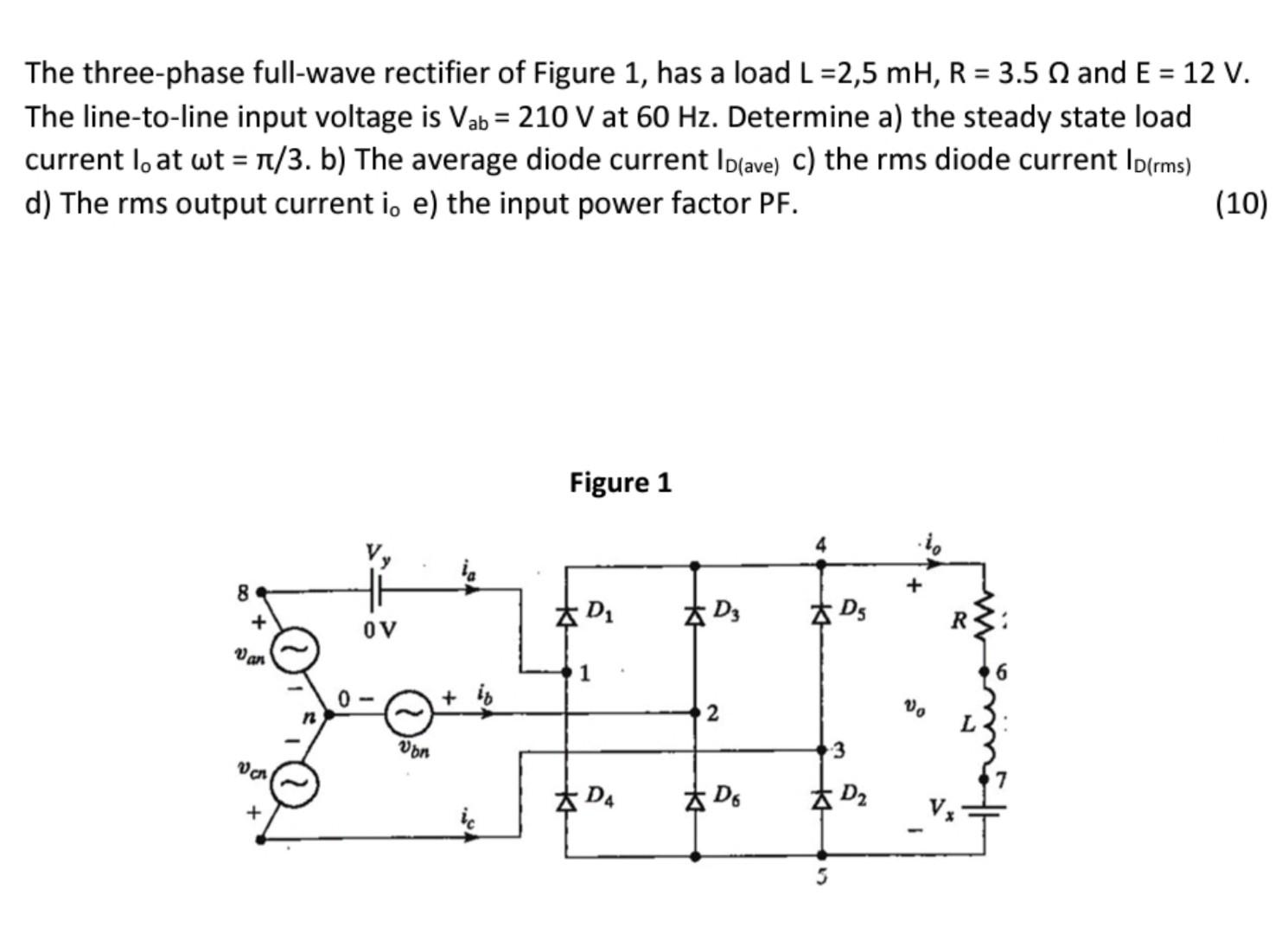

The three-phase full-wave rectifier of Figure 1, has a load L=2,5 mH, R = 3.5 2 and E = 12 V. The line-to-line input voltage is Vab = 210 V at 60 Hz. Determine a) the steady state load current l, at wt = π/3. b) The average diode current ID(ave) c) the rms diode current ID(rms) d) The rms output current i, e) the input power factor PF. (10) Figure 1 + 8 OV van von Von & D₂ * DA D3 2 Do D5 D₂ Vo
