Problem 2 (10 points): The schematic of a BJT two-stage op-amp is shown in Fig. 2. (a) Find the small-signal open-loop g

[answerhappygod]

Problem 2 10 Points The Schematic Of A Bjt Two Stage Op Amp Is Shown In Fig 2 A Find The Small Signal Open Loop G 1 (51.76 KiB) Viewed 22 times

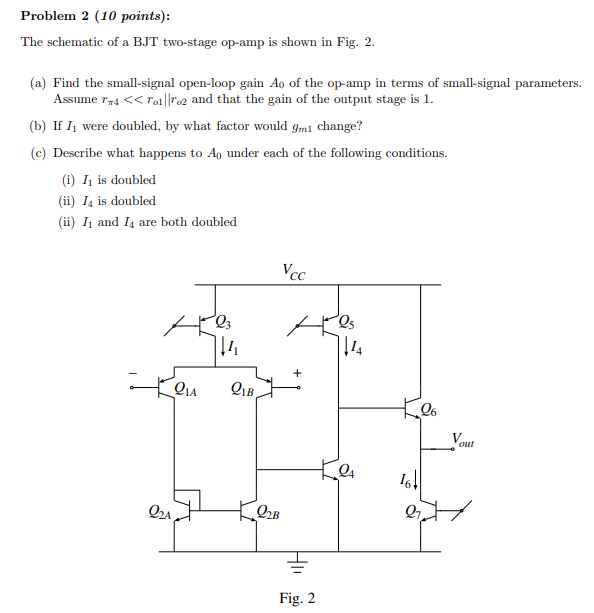

Problem 2 (10 points): The schematic of a BJT two-stage op-amp is shown in Fig. 2. (a) Find the small-signal open-loop gain Ao of the op-amp in terms of small-signal parameters. Assume r#4 << To1||702 and that the gain of the output stage is 1. (b) If I were doubled, by what factor would 9m1 change? (c) Describe what happens to Ao under each of the following conditions. (i) I₁ is doubled (ii) I4 is doubled (ii) I and I are both doubled Vcc Q₁ + 224 ||4₂ LIA QIB. KQ2B Hv Fig. 2 Q5 Klo 16 27 out
