be no solution on paper
Finding the solutions of the given nonlinear dynamic circuit
with the help of computer
is requested. However, you will first start with a linear circuit.
1) Obtain the equation of state representation of the circuit in
Figure 1
The definition equation of the element whose current-voltage
characteristic is given in Figure 2 (b) is given below.
given.

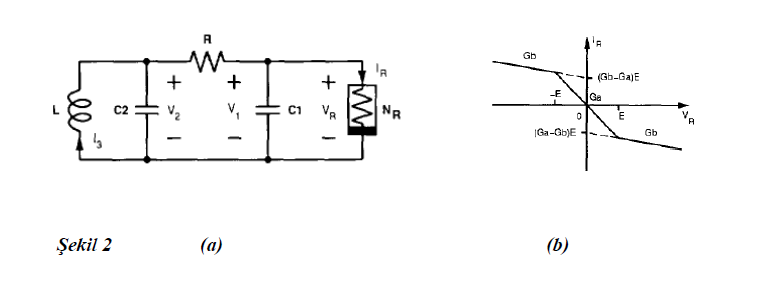

Obtain the equations of state for the circuit in Figure 2(a)
and
Write in the given structure. (Express the ,,a,b values in
terms of R,C1,C2,L,Ga,Gb,E.)
- The Question Will Be Solved Only Via Matlab There Will Be No Solution On Paper Finding The Solutions Of The Given Nonli 1 (14.14 KiB) Viewed 37 times
- The Question Will Be Solved Only Via Matlab There Will Be No Solution On Paper Finding The Solutions Of The Given Nonli 2 (18.04 KiB) Viewed 37 times
obtained.
For solution, create m-file in MATLAB (=9, =14.286, a=1.4,
b=0.2858
You can use values.)
Examine the dependence of the solutions on the initial conditions
and values.
L | + V2 - + v, Şekil 1 ㅔ + C1 VR - Ra
ее 43 Şekil 2 C2 + = 1 A (a) | < + HH C1 + = 1 www A NR LI 8 Gb (Gb-Ga)E -E * Ga 0 E Ga-Gb)E Gb (b)
