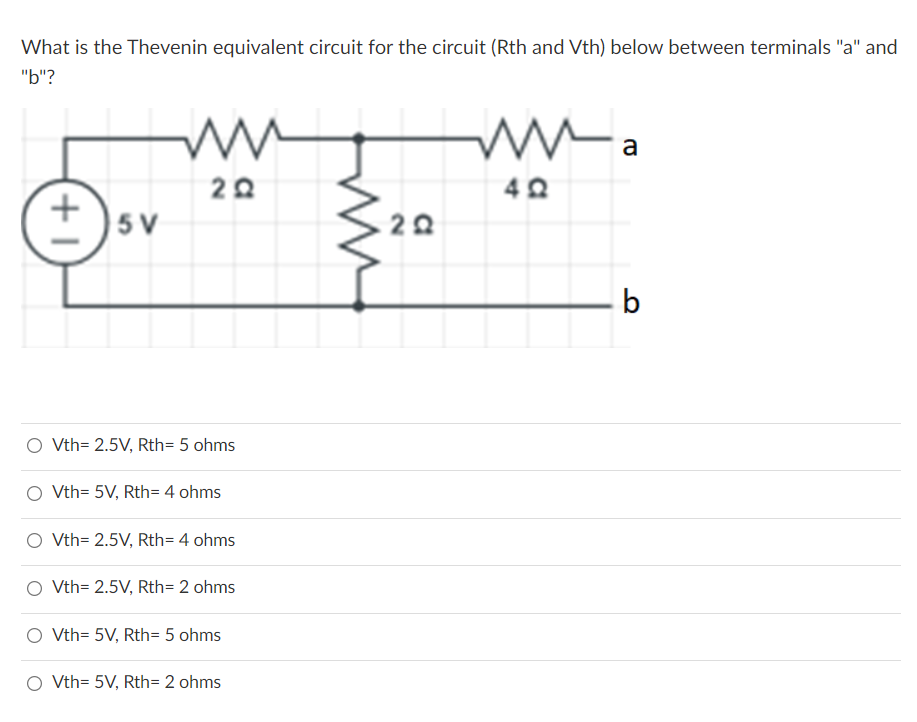

What is the Thevenin equivalent circuit for the circuit (Rth and Vth) below between terminals "a" and "b"? ww wwa 20 4Q
