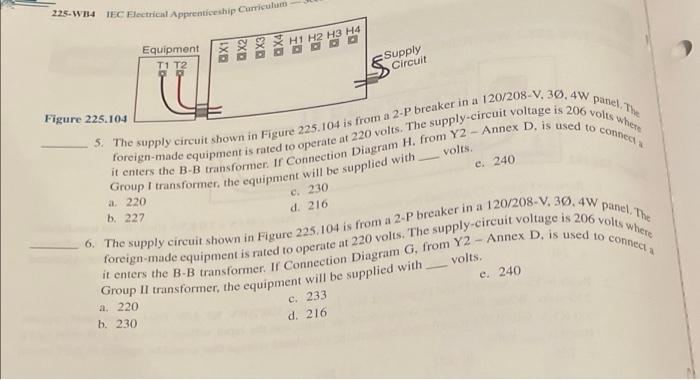

225-WB4 IEC Electrical Apprenticeship Curriculum- Equipment T1 T2 Supply Circuit Figure 225.104 5. The supply circuit shown in Figure 225.104 is from a 2-P breaker in a 120/208-V, 30, 4W panel. The it enters the B-B transformer. If Connection Diagram H, from Y2- Annex D. is used to connect a foreign-made equipment is rated to operate at 220 volts. The supply-circuit voltage is 206 volts where volts. Group I transformer, the equipment will be supplied with c. 240 a. 220 c. 230 b. 227 d. 216 6. The supply circuit shown in Figure 225.104 is from a 2-P breaker in a 120/208-V, 30, 4W panel. The it enters the B-B transformer. If Connection Diagram G, from Y2 - Annex D, is used to connect a foreign-made equipment is rated to operate at 220 volts. The supply-circuit voltage is 206 volts where Group II transformer, the equipment will be supplied with volts. a. 220 e. 240 c. 233 b. 230 d. 216 X1 X2 X3 X4 30 20 H2 H3 H4
