HW Assignment 1: compute the base current and base impedance for each region and then show that the pu impedance in thre

Post by answerhappygod »

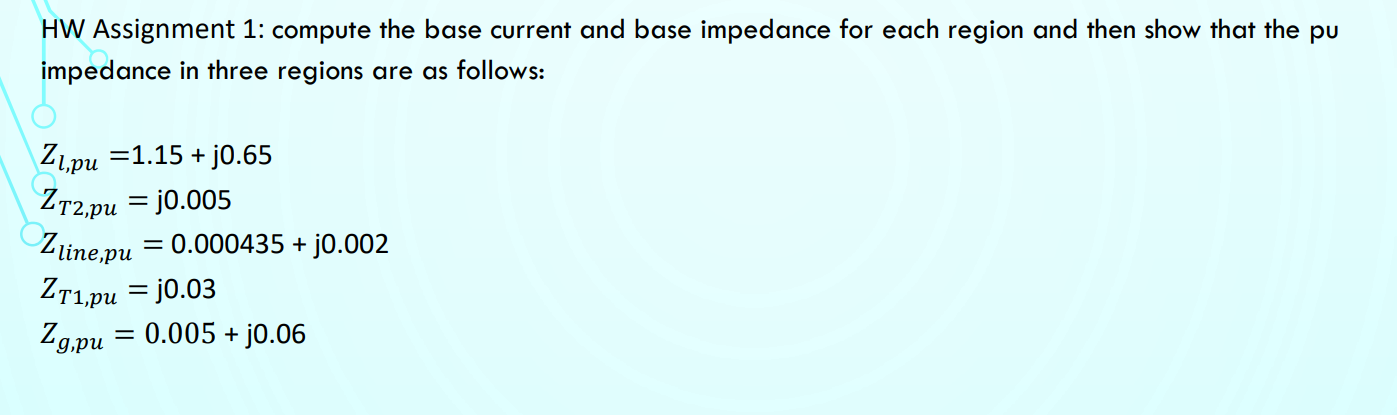

Hw Assignment 1 Compute The Base Current And Base Impedance For Each Region And Then Show That The Pu Impedance In Thre 1
Hw Assignment 1 Compute The Base Current And Base Impedance For Each Region And Then Show That The Pu Impedance In Thre 1 (127.21 KiB) Viewed 51 times
HW Assignment 1: compute the base current and base impedance for each region and then show that the pu impedance in three regions are as follows: Zl,pu 1.15 + j0.65 ZT2,pu = :j0.005 Zline,pu = 0.000435 + j0.002 ZT1,pu = j0.03 Zg.pu= = 0.005 + j0.06
