The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If IL (0) = 0A, how much energy is sto

[answerhappygod]

The Voltage V T Shown In Fig P7 85a Is Given By The Graph Shown In Fig P7 85b If Il 0 0a How Much Energy Is Sto 1 (69.87 KiB) Viewed 39 times

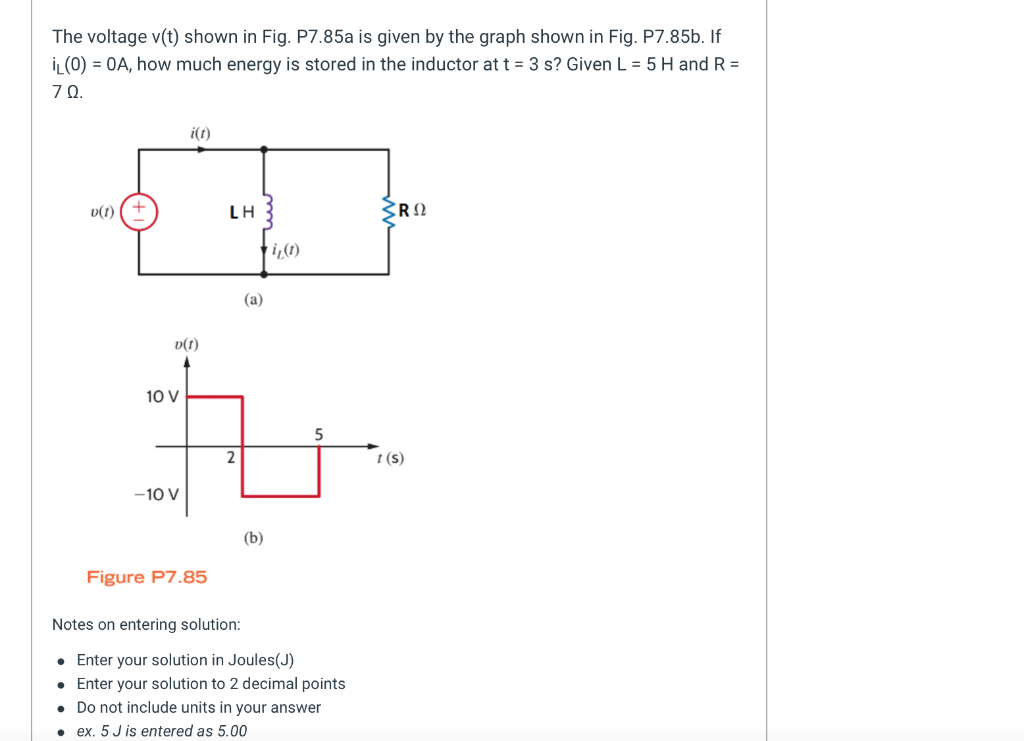

The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If IL (0) = 0A, how much energy is stored in the inductor at t = 3 s? Given L = 5 H and R = 70. i(t) v(1) RO v(1) LH (a) 2 10 V -10 V Figure P7.85 Notes on entering solution: • Enter your solution in Joules(J) • Enter your solution to 2 decimal points . Do not include units in your answer ex. 5 J is entered as 5.00 i₁(1) (b) 5 t(s)
