Figure 3 Represents part of circuit diagram of Opto Coupler Experiments, if R4-27K02, R5=8.2K Q, R6=3K _Q, R3=1K Q, R7=5

[answerhappygod]

Figure 3 Represents Part Of Circuit Diagram Of Opto Coupler Experiments If R4 27k02 R5 8 2k Q R6 3k Q R3 1k Q R7 5 1 (33.42 KiB) Viewed 39 times

Figure 3 Represents Part Of Circuit Diagram Of Opto Coupler Experiments If R4 27k02 R5 8 2k Q R6 3k Q R3 1k Q R7 5 2 (39.93 KiB) Viewed 39 times

Figure 3 Represents Part Of Circuit Diagram Of Opto Coupler Experiments If R4 27k02 R5 8 2k Q R6 3k Q R3 1k Q R7 5 3 (23.52 KiB) Viewed 39 times

Figure 3 Represents Part Of Circuit Diagram Of Opto Coupler Experiments If R4 27k02 R5 8 2k Q R6 3k Q R3 1k Q R7 5 4 (22.33 KiB) Viewed 39 times

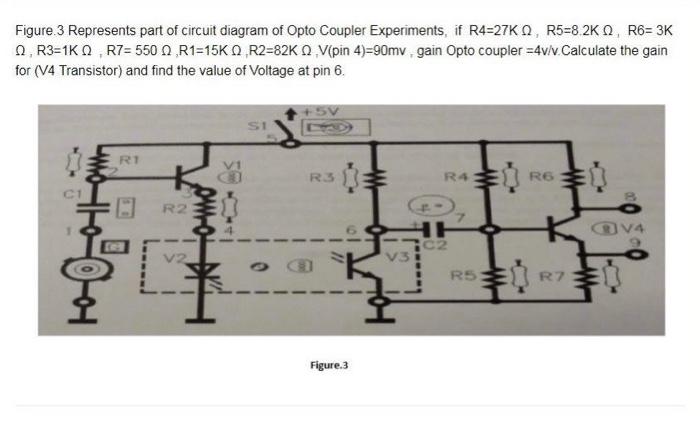

Figure 3 Represents part of circuit diagram of Opto Coupler Experiments, if R4-27K02, R5=8.2K Q, R6=3K _Q, R3=1K Q, R7=550D R1=15KQR2=82K 2 V(pin 4)=90mv, gain Opto coupler =4v/v.Calculate the gain for (V4 Transistor) and find the value of Voltage at pin 6. 5V SI R1 R4 1 R6 이어 R2 R3 Figure.3 HH C2 R5 R7

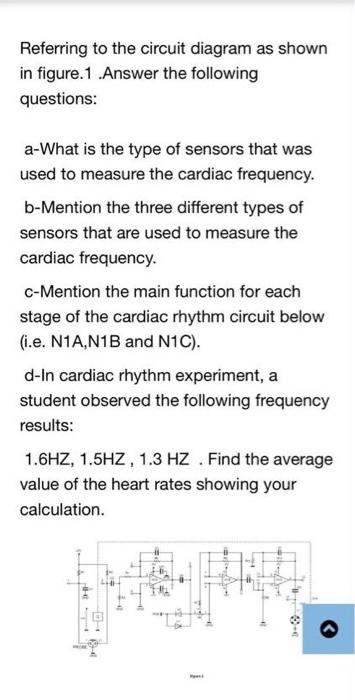

Referring to the circuit diagram as shown in figure. 1 .Answer the following questions: a-What is the type of sensors that was used to measure the cardiac frequency. b-Mention the three different types of sensors that are used to measure the cardiac frequency. c-Mention the main function for each stage of the cardiac rhythm circuit below (i.e. N1A,N1B and N1C). d-In cardiac rhythm experiment, a student observed the following frequency results: 1.6HZ, 1.5HZ, 1.3 HZ. Find the average value of the heart rates showing your calculation. P

HH? PROBE GND ON 31 ww HE R3 OND GND GND As PA Figure.1 GND S Fw HE 20:0 W ER CHE ¡CHT Nosc

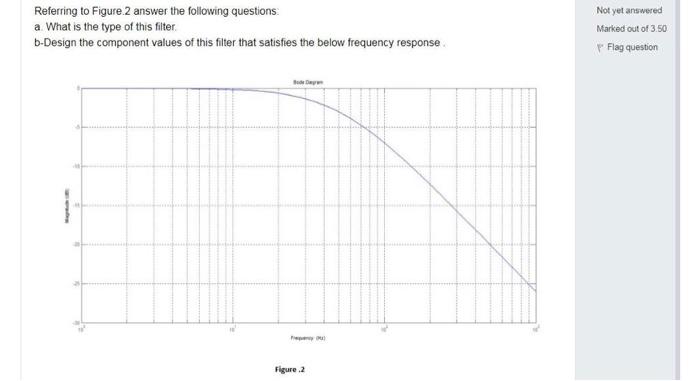

Referring to Figure.2 answer the following questions: a. What is the type of this filter. b-Design the component values of this filter that satisfies the below frequency response y Figure.2 Not yet answered Marked out of 3.50 Flag question
