11 of 12 Q7. (Marks-2x1.5) 7.1) Describe briefly the terms volatile and non-volatile in the context of semiconductor mem

[answerhappygod]

11 Of 12 Q7 Marks 2x1 5 7 1 Describe Briefly The Terms Volatile And Non Volatile In The Context Of Semiconductor Mem 1 (24.8 KiB) Viewed 23 times

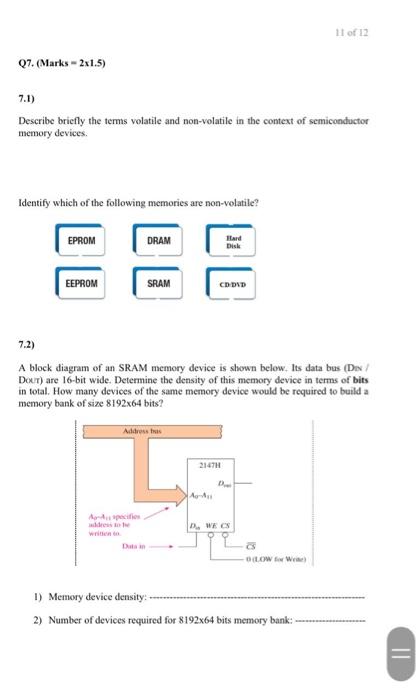

11 of 12 Q7. (Marks-2x1.5) 7.1) Describe briefly the terms volatile and non-volatile in the context of semiconductor memory devices. Identify which of the following memories are non-volatile? EPROM DRAM Hard Disk EEPROM SRAM CD-DVD 7.2) A block diagram of an SRAM memory device is shown below. Its data bus (Dex / DOUT) are 16-bit wide. Determine the density of this memory device in terms of bits in total. How many devices of the same memory device would be required to build a memory bank of size 8192x64 bits? Address bas 2147H Ag-Au Ag-Aspecifios address to he D WE CS Data in 0(LOW for Wee) 1) Memory device density: 2) Number of devices required for 8192x64 bits memory bank: ||
