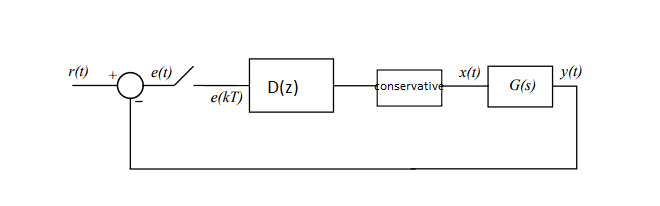

(a) In the feedback system given in the figure below, D(z) =
1/(1-z^-1) and G(s) = 5/(s(s+5)). Examine the stability of the
system separately at T = 1 and T = 0.2 seconds.
(b) In the same feedback system, if G(s) = 1/(s(s+2)) is selected,
find the appropriate transfer function D(z) so that the unit step
input applied to the input can be traced at the output.
A In The Feedback System Given In The Figure Below D Z 1 1 Z 1 And G S 5 S S 5 Examine The Stability Of 1 (7.97 KiB) Viewed 35 times
r(t) e(t) e(kT) D(z) conservative x(t) G(s) y(t)
