03: For the full-bridge inverter, the DC source is 125V, the load is a series RL connection with R=1002 and L=20mH, and

Post by answerhappygod »

03 For The Full Bridge Inverter The Dc Source Is 125v The Load Is A Series Rl Connection With R 1002 And L 20mh And 1
03 For The Full Bridge Inverter The Dc Source Is 125v The Load Is A Series Rl Connection With R 1002 And L 20mh And 1 (31.14 KiB) Viewed 22 times

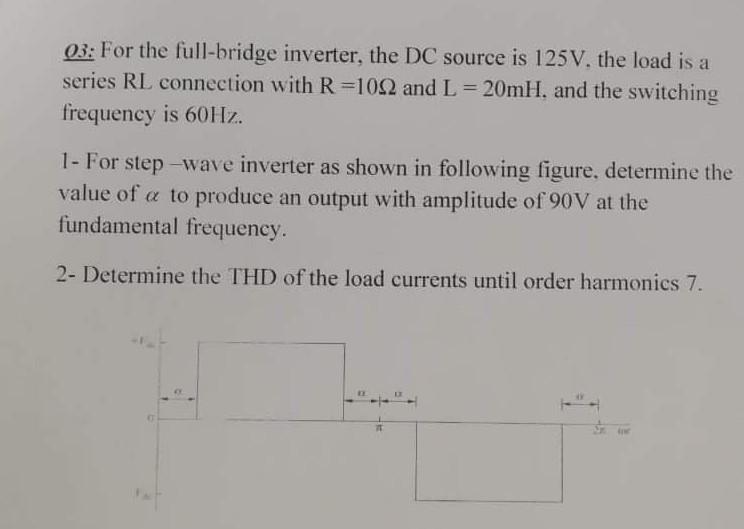

03: For the full-bridge inverter, the DC source is 125V, the load is a series RL connection with R=1002 and L=20mH, and the switching frequency is 60Hz. 1- For step-wave inverter as shown in following figure, determine the value of a to produce an output with amplitude of 90V at the fundamental frequency. 2- Determine the THD of the load currents until order harmonics 7. KX 6
