Homework #4 For BJT, B-50, Is-3x10-13A, VCEsar 0.2V, VA-00 (V₁-25.9mV). VE 1.2V and VCE=3V are aimed for DC. (Use expone

[answerhappygod]

Homework 4 For Bjt B 50 Is 3x10 13a Vcesar 0 2v Va 00 V 25 9mv Ve 1 2v And Vce 3v Are Aimed For Dc Use Expone 1 (30.56 KiB) Viewed 20 times

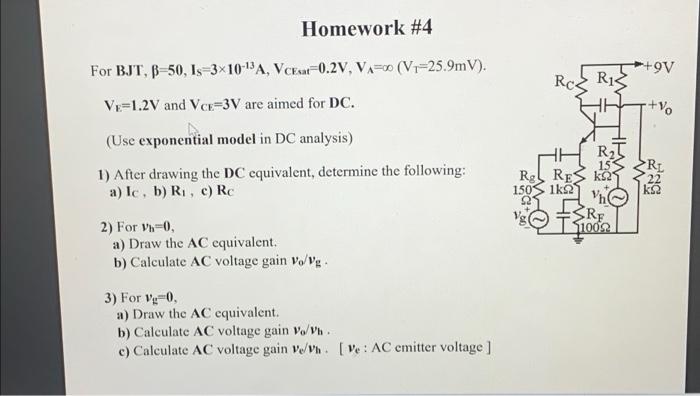

Homework #4 For BJT, B-50, Is-3x10-13A, VCEsar 0.2V, VA-00 (V₁-25.9mV). VE 1.2V and VCE=3V are aimed for DC. (Use exponential model in DC analysis) 1) After drawing the DC equivalent, determine the following: a) Ic, b) R₁, c) Rc 2) For Vh=0, a) Draw the AC equivalent. b) Calculate AC voltage gain Vo/vg. 3) For Vg 0, a) Draw the AC equivalent. b) Calculate AC voltage gain Vo/Vh. c) Calculate AC voltage gain ve/vh. [ve: AC emitter voltage ] R RE 1505 1ΚΩ 22 R₁- Vh RE $100 +9V •+% M NG
