□ DRILL PROBLEMS D4.6 Sketch root locus plots for the systems in Figure D4.6. Find asymptotic angles, centroid, approxim

Post by answerhappygod »

Drill Problems D4 6 Sketch Root Locus Plots For The Systems In Figure D4 6 Find Asymptotic Angles Centroid Approxim 1
Drill Problems D4 6 Sketch Root Locus Plots For The Systems In Figure D4 6 Find Asymptotic Angles Centroid Approxim 1 (24.46 KiB) Viewed 22 times

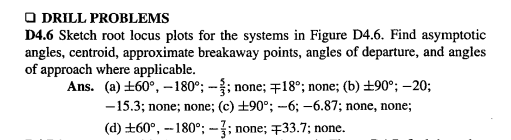

□ DRILL PROBLEMS D4.6 Sketch root locus plots for the systems in Figure D4.6. Find asymptotic angles, centroid, approximate breakaway points, angles of departure, and angles of approach where applicable. Ans. (a) ±60°, -180°; -; none; 18°; none; (b) ±90°; -20; -15.3; none; none; (c) ±90°; -6; -6.87; none, none; (d) +60°, --180°; -; none; +33.7; none.
