Given the circuit in Figure 9-1, find the voltage across the 1000 resistor using loop analysis. 1000 Q 820 Ω W 2.0 V 6.0

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Given the circuit in Figure 9-1, find the voltage across the 1000 resistor using loop analysis. 1000 Q 820 Ω W 2.0 V 6.0

Post by answerhappygod »

1
1 (30.56 KiB) Viewed 12 times

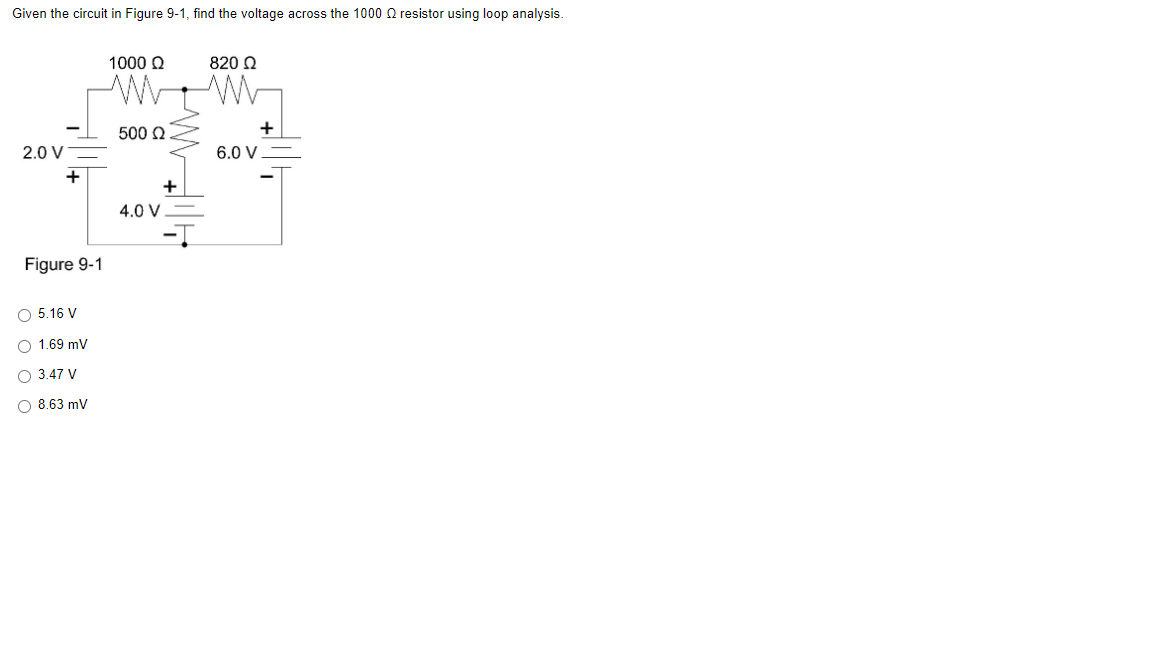

Given the circuit in Figure 9-1, find the voltage across the 1000 resistor using loop analysis. 1000 Q 820 Ω W 2.0 V 6.0 V Figure 9-1 O 5.16 V O 1.69 mV 3.47 V 8.63 mV 500 Ω 4.0 V +
