Q.2) For the JFET biasing circuit, answer the following questions. The values of RD and Rs are the same are obtained fro

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q.2) For the JFET biasing circuit, answer the following questions. The values of RD and Rs are the same are obtained fro

Post by answerhappygod »

Q 2 For The Jfet Biasing Circuit Answer The Following Questions The Values Of Rd And Rs Are The Same Are Obtained Fro 1
Q 2 For The Jfet Biasing Circuit Answer The Following Questions The Values Of Rd And Rs Are The Same Are Obtained Fro 1 (56.44 KiB) Viewed 24 times

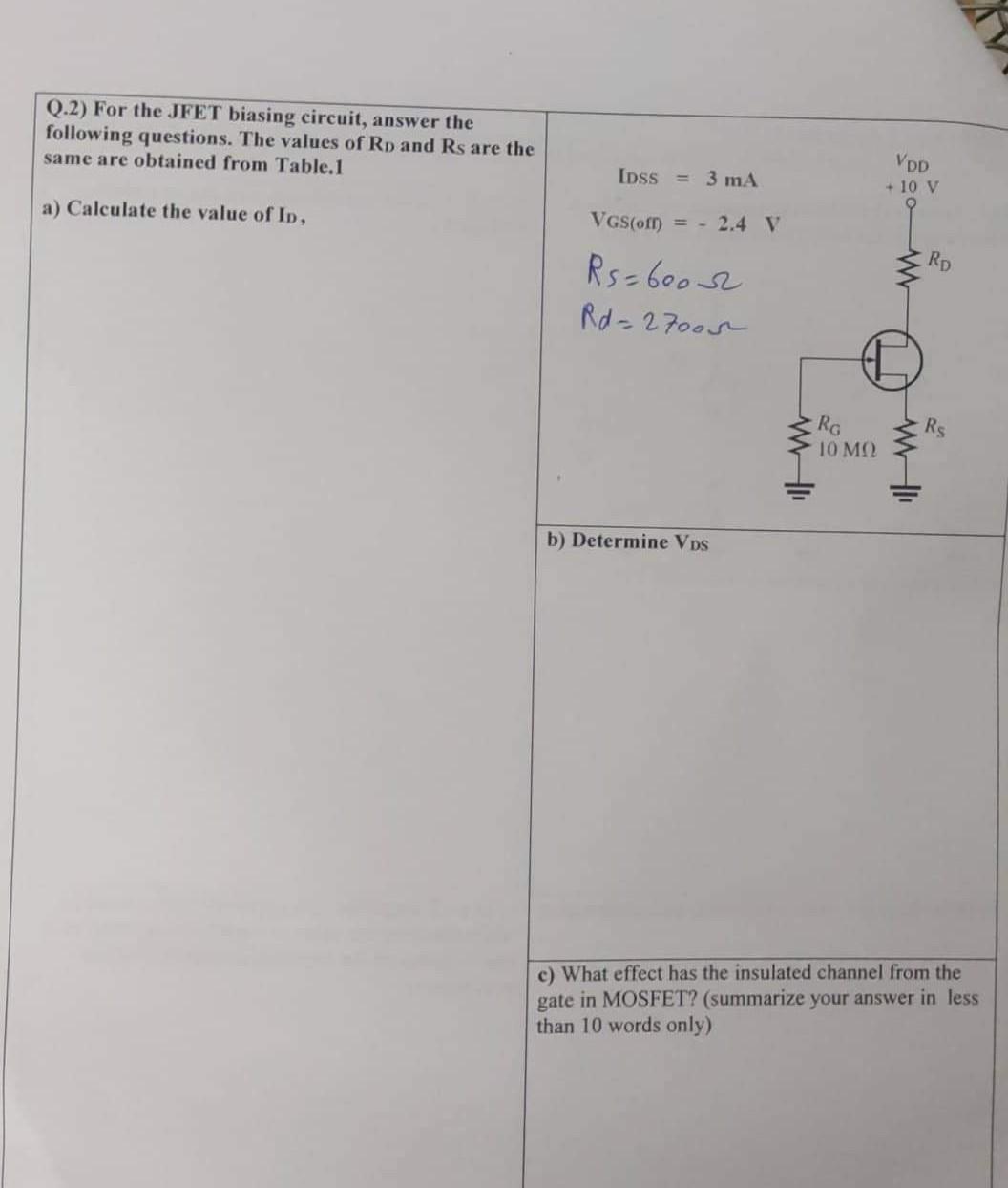

Q.2) For the JFET biasing circuit, answer the following questions. The values of RD and Rs are the same are obtained from Table.1 a) Calculate the value of ID, IDSS = 3 mA VGS(off) - 2.4 V Rs=60052 Rd=27005 RG ΤΟ ΜΩ VDD + 10 V RD Rs b) Determine VDS c) What effect has the insulated channel from the gate in MOSFET? (summarize your answer in less than 10 words only)
