Procedure: 1. In your simulation software, create the following circuit. Label all components clearly with the values as

[answerhappygod]

Procedure 1 In Your Simulation Software Create The Following Circuit Label All Components Clearly With The Values As 1 (44.07 KiB) Viewed 21 times

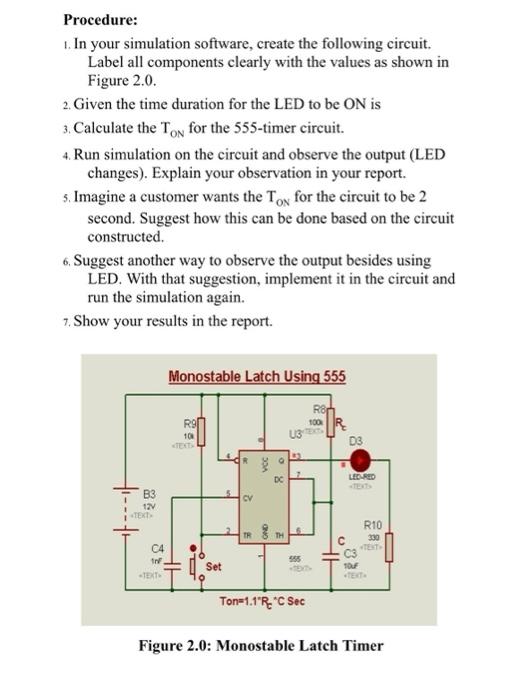

Procedure: 1. In your simulation software, create the following circuit. Label all components clearly with the values as shown in Figure 2.0. 2. Given the time duration for the LED to be ON is 3. Calculate the Ton for the 555-timer circuit. 4. Run simulation on the circuit and observe the output (LED changes). Explain your observation in your report. 5. Imagine a customer wants the Tox for the circuit to be 2 second. Suggest how this can be done based on the circuit constructed. 6. Suggest another way to observe the output besides using LED. With that suggestion, implement it in the circuit and run the simulation again. 7. Show your results in the report. Monostable Latch Using 555 R8 R9 10 100 R U3TEXT B3 12V <TEXT TEXT 10 -o K 304 Set Q CV TH TH C4 Inf -TEXT -TEXT- TEXT Ton=1.1°R. *C Sec Figure 2.0: Monostable Latch Timer DC 8 D3 LED-RED C C3 10uF R10 330 TENT
