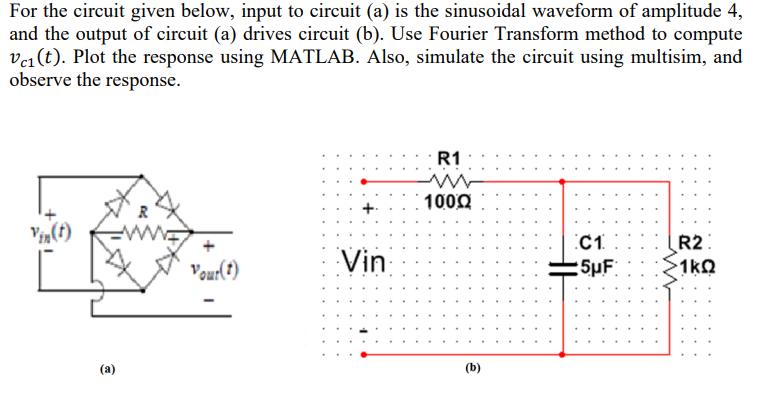

For the circuit given below, input to circuit (a) is the sinusoidal waveform of amplitude 4, and the output of circuit (

[answerhappygod]

For The Circuit Given Below Input To Circuit A Is The Sinusoidal Waveform Of Amplitude 4 And The Output Of Circuit 1 (77.25 KiB) Viewed 61 times

For the circuit given below, input to circuit (a) is the sinusoidal waveform of amplitude 4, and the output of circuit (a) drives circuit (b). Use Fourier Transform method to compute Vc₁(t). Plot the response using MATLAB. Also, simulate the circuit using multisim, and observe the response. R1 w 1000 Vin(t) C1 R2: Your(t) Vin 5µF · 1 ΚΩ (a) (b) HE
