3. Assume that Sij=-Sji*. This is consistent with modeling the transmission lines as inductors, If it is assumed that th

[answerhappygod]

3 Assume That Sij Sji This Is Consistent With Modeling The Transmission Lines As Inductors If It Is Assumed That Th 1 (202.58 KiB) Viewed 22 times

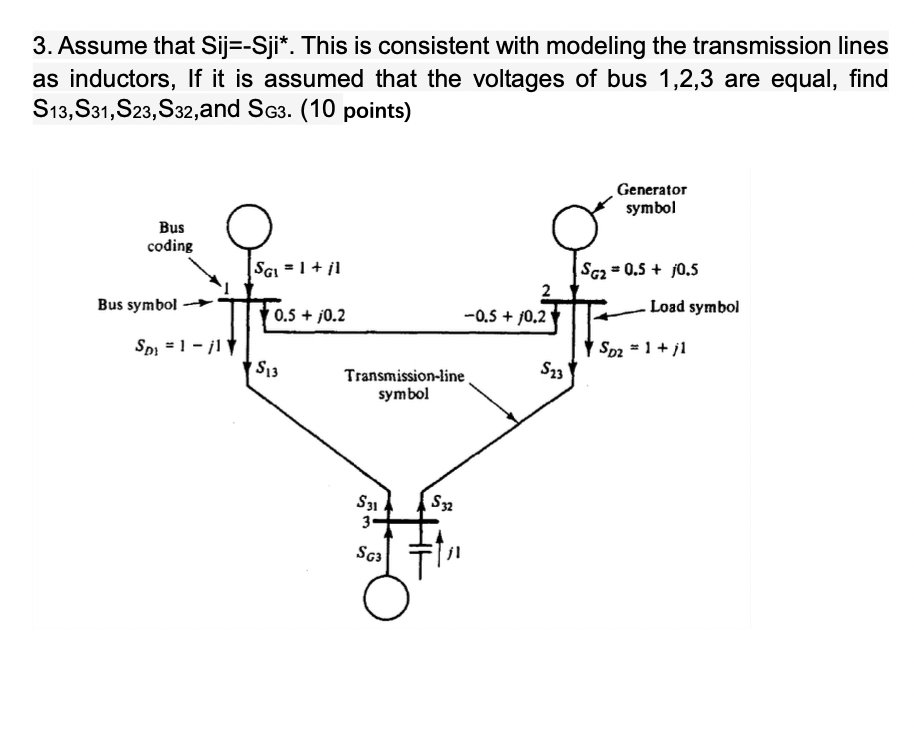

3. Assume that Sij=-Sji*. This is consistent with modeling the transmission lines as inductors, If it is assumed that the voltages of bus 1,2,3 are equal, find S13, S31, S23, S32,and SG3. (10 points) Generator symbol Bus coding SG= 1 + jl SG2 = 0.5 +10.5 0.5 + j0.2 -0.5 +10.2 SD2 = 1 +j1 Bus symbol SD1 =1-11 S13 Transmission-line, symbol S31 S32 3 SG3 j1 $23 Load symbol
