Given the circuit in Figure 7-3, calculate the total resistance if the 47 Ω resistor shorts out. 47 Ω 40 Ω 120 Ω Ο 122 Ω

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Given the circuit in Figure 7-3, calculate the total resistance if the 47 Ω resistor shorts out. 47 Ω 40 Ω 120 Ω Ο 122 Ω

Post by answerhappygod »

1
1 (29.97 KiB) Viewed 29 times

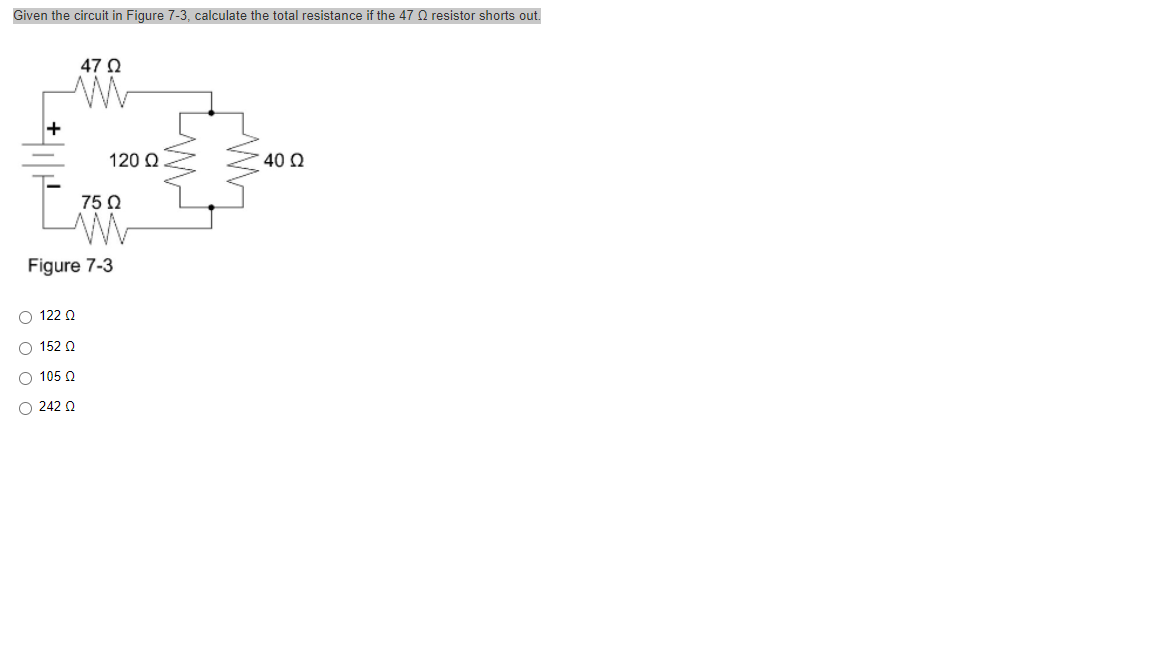

Given the circuit in Figure 7-3, calculate the total resistance if the 47 Ω resistor shorts out. 47 Ω 40 Ω 120 Ω Ο 122 Ω Ο 152 Ω 105 Ω Ο 242 Ω 75 Ω Figure 7-3
