Using superposition, determine the current through R3. VS1 = Vs2 = 450 V; R₁ = 70; R₂ = 50; R3 = 100 R₁ = R₁ = 102 ww R₁

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Using superposition, determine the current through R3. VS1 = Vs2 = 450 V; R₁ = 70; R₂ = 50; R3 = 100 R₁ = R₁ = 102 ww R₁

Post by answerhappygod »

Using Superposition Determine The Current Through R3 Vs1 Vs2 450 V R 70 R 50 R3 100 R R 102 Ww R 1
Using Superposition Determine The Current Through R3 Vs1 Vs2 450 V R 70 R 50 R3 100 R R 102 Ww R 1 (20.08 KiB) Viewed 20 times

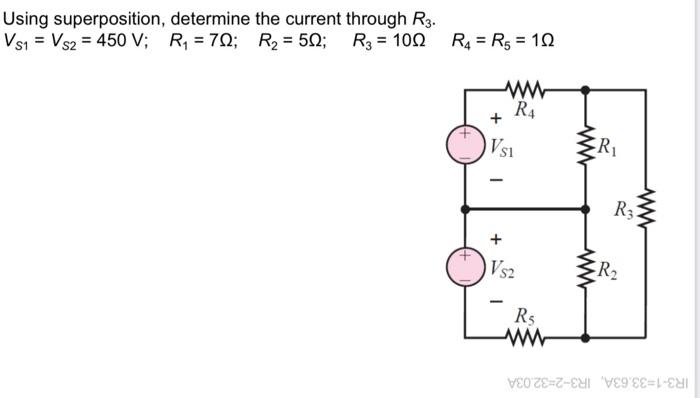

Using superposition, determine the current through R3. VS1 = Vs2 = 450 V; R₁ = 70; R₂ = 50; R3 = 100 R₁ = R₁ = 102 ww R₁ + Vsi VS2 R$ - ww ww R₁ R32 ww R₂
